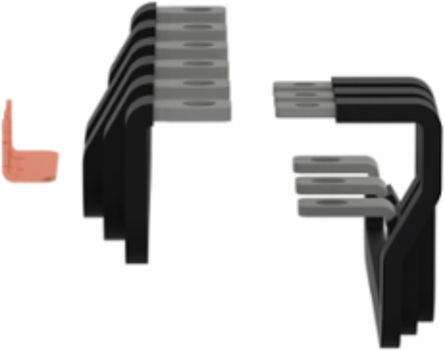

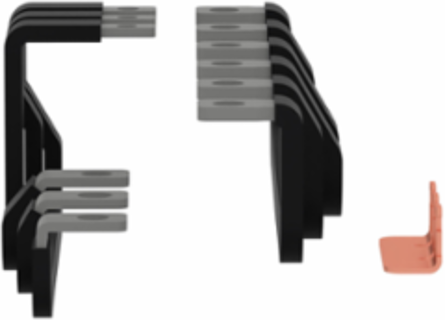

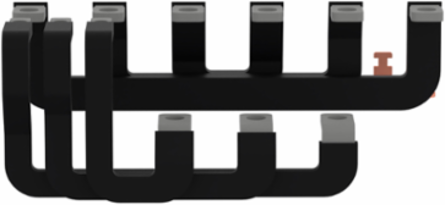

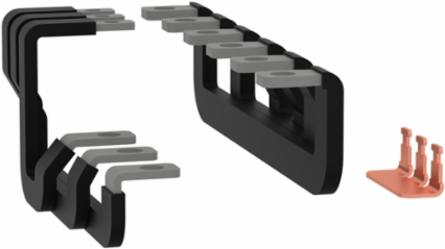

Schneider Electric LAD9150SD17 Star delta bar, Tesys Deca Advanced, for D115-150A contactor lugs-ring, D40-65A contactor
- MPN: LAD9150SD17
- PPN: SCH-LAD9150SD17
CAD
$388.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These accessories are star-delta bars for TeSys Deca Advanced contactors 3 poles 115A to 150A. These busbars are designed to be attached on the contactor connectors to assemble a Star delta application by line-delta bars for TeSys Deca Advanced contactors 115A to 150A and star bars for TeSys Deca contactors LC1D40A to LC1D65A. They operate within a temperature range of -40°C to 70°C and can be used at altitudes of up to 3000m without derating. Unique QR code provides quick access to complete product data.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1
- Local Publishable Date
- 2026-07-01
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Device Short Name
- LAD9
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- 1
- Range Of Product
- TeSys Deca
- Sustainable Packaging
- Yes
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8544493040
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2538
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Electrical Circuit Typestar-delta
Number Of Poles3P
Product Or Component Typeset of connections
RangeTeSys
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Package Weight(Lbs)694.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Product Compatibility
- LC1D40A, LC1D65A, LC1D115, LC1D150
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Ambient Air Temperature For Storage-60-80 °C, -60-80 °C
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- set of connections
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
