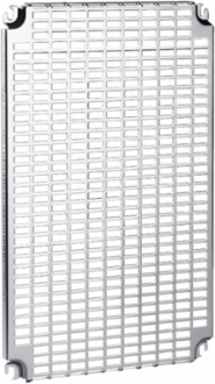

Schneider Electric NSYPMR57 Telequick Mounting Plate for PLA Enclosure 500mm x 750mm, Galvanized Steel, 150kg Load
- MPN: NSYPMR57
- PPN: SCH-NSYPMR57
CAD
$161.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

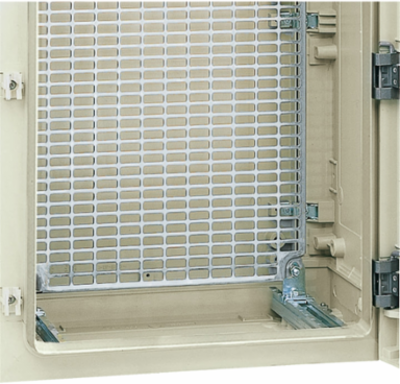

Designed for versatility and strength, this Telequick mounting plate from Schneider Electric is an essential component for the Thalassa PLA enclosure series. Crafted from durable galvanized steel, it offers a robust solution with a permanent permissible load of up to 150 kg, ensuring reliable support for various applications. With dimensions of 500 mm in height and 750 mm in width, this perforated mounting plate allows for efficient installation and organization of equipment, while its compatibility with back inserts and step slides enhances its adaptability. Furthermore, it is designed with environmental considerations in mind, being free from substances of very high concern and compliant with EU RoHS directives, making it a responsible choice for any project.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France
- Width
- 24.65 in
Height14.57 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Local Data Status
- Publishable
- Return Indicator
- N
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Fixing Mode
- by screws M8 - on back inserts
- Mounting Plate Description
- Telequick perforated
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Height Nominal
- nominal: 500 mm
- Width Nominal
- nominal: 750 mm
- Accessory / Separate Part Category
- mounting accessory
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Locationback inserts, step slide
Local Publishable Date2026-04-18
Stocking FlagY
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Composition1 mounting plate
Materialgalvanised steel
Permanent Permissible Load150 kg
Product Or Component Typemounting plate
ReturnabilityNo
Pep CodeENVPEP2202003EN
Height Usefulreal: 370 mm
Width Realreal: 626 mm
Cut-out Dimensions11 x 26 mm
Package Weight(Lbs)1.832 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2202003EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
