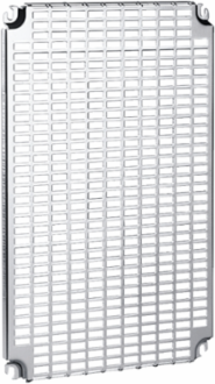

Schneider Electric NSYPMR77 Telequick Mounting Plate 750mm x 750mm, Galvanised Steel, 150kg Load

MPN: NSYPMR77
PPN: SCH-NSYPMR77

$187.94

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed for versatility and strength, this Telequick mounting plate is an essential accessory for the Thalassa PLA and PHD enclosures. Crafted from durable galvanised steel, it boasts a robust construction that can support a permanent permissible load of up to 150 kg, ensuring reliability in various applications. With nominal dimensions of 750 mm in height and width, and a depth of 15 mm, this mounting plate is engineered for easy installation using M8 screws on back inserts. Its perforated design allows for efficient mounting of multiple devices, making it an ideal solution for diverse mounting needs in industrial settings.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain, France, India
Width	24.65 in

Height	24.41 in

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Enclosure Nominal Dimensions	-, -
Local Data Status	Publishable
Return Indicator	N
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Fixing Mode	by screws M8 - on back inserts
Mounting Plate Description	Telequick perforated
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range	PanelSeT
Sustainable Packaging	No
Height Nominal	nominal: 750 mm
Width Nominal	nominal: 750 mm
Accessory / Separate Part Category	mounting accessory
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	7326190080

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Mounting Location	back inserts, step slide
Local Publishable Date	2026-04-18
Stocking Flag	Y
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Composition	1 mounting plate
Material	galvanised steel
Permanent Permissible Load	150 kg
Product Or Component Type	mounting plate
Returnability	No
Pep Code	ENVPEP2202003EN
Height Useful	real: 620 mm
Width Real	real: 626 mm
Cut-out Dimensions	11 x 26 mm
Package Weight(Lbs)	2.922 kg
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP2202003EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2202003EN

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
