Klein Tools

Klein Tools 1628-40VR Chicago Grip - Dual Conductor for 0.95 to 1.27 Inch Cables, 15,000 lb Load Capacity

Chicago Grip - Dual Conductor for 0.95 to 1.27 Inch Cables, 15,000 lb Load Capacity
  • MPN: 1628-40VR
  • UPC: 092644470509
  • PPN: KLT-1628-40VR
  • UNSPSC: 46182308

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4643.25/ EA

Description

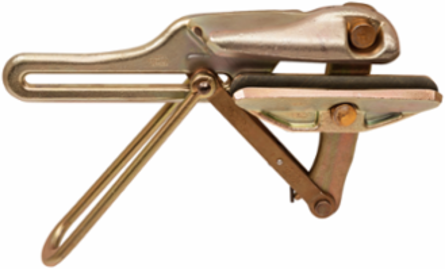

The Klein Tools Chicago® Grip - Dual Conductor Trans is designed specifically for VR2® (vibration-resistant) and TransPowr® T-2® dual conductor twisted pair cables. The machined upper and lower jaws eliminate scoring or damage to second conductor by contouring to second conductor. The round jaws are shaped to provide maximum contact with circumference of cable and prevent cable deformation.

Features

  • Made in USA and designed specifically for VR2® (vibration-resistant) and TransPowr® T-2® dual conductor twisted pair cables
  • Machined upper and lower jaws eliminate scoring or damage to second conductor by contouring to second conductor
  • Round jaws shaped to provide maximum contact with circumference of cable and prevent cable deformation
  • Supplied with spring and locking loop handles, allows jaws to be held in open position for easier placement on cable
  • Grips maintain temporary tension until the wire or cable can be permanently terminated
  • Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code
  • VR2 is a registered trademark of Southwire Company
  • TransPowr and T-2 are registered trademarks of General Cable Technologies Corporation.
  • Specially milled jaws for the Vibration Resistant twin conductor

Specifications

Specifications

Material
Steel
Jaw Type
Round
Cable Type
ACSR, AAC
Cable Diameter
0.95" to 1.27" (24.13 to 32.3)
Hot Latch
No
Swing Latch
No
Width
10.0800 in
Weight
30.2850 lbs
TypeChicago Grip
ApplicationWire Pulling
Maximum Safe Load15,000 lb (6803 kg)
Locking HandleNo
SpringNo
Height3.1500 in
Depth15.8400 in
