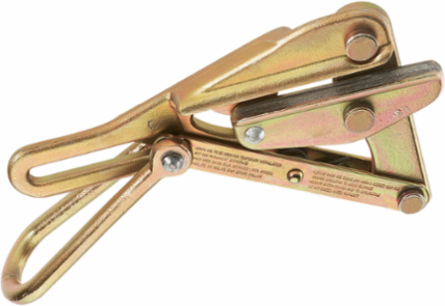

Klein Tools 1684-5 Chicago Grip for High Strength Cables 0.218-0.55 Inch, Max Load 8000 lb
- MPN: 1684-5
- UPC: 092644471629
- PPN: KLT-1684-5
- UNSPSC: 46182308
CAD
$778.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.218-Inch to 0.55-Inch (5.5 to 13.9 mm). Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable.
Features
- Designed for cable sizes from 0.218 to 0.55-Inch (5.5 to 13.9 mm) with Max Safe Load of 8000-Pound (3629 kg)
- Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- Manufactured from drop-forged, heat-treated steel for excellent durability
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
- Made in USA
Documentation & Downloads
Specifications
Key Specifications
- Type
- Chicago Grip
- Jaw Type
- Double V
- Cable Diameter
- 0.218" to 0.55" (5.54 to 13.97 mm)
- Locking Handle
- Yes
- Spring
- Yes
- Teeth Type
- Smooth
- Overall Length (cm)
- 33.8
- Overall Height (Inch)
- 2.5
- Maximum Safe Load (kg)
- 3628.7
- Overall Height (cm)
- 6.4
- Maximum Safe Load (lb)
- 8000
- Overall Width (cm)
- 19.3
- Width
- 6.0750 in
- Weight
- 5.7600 lbs
Cable TypeAircraft, EHS, Messenger, Guy Strand
ApplicationWire Pulling
MaterialSteel
Hot LatchNo
Swing LatchNo
Weight (kg)2.6
Overall Width (Inch)7.6
Jaw Length (cm)12.7
Jaw Length (Inch)5
Overall Length (Inch)13.3
Weight (lb)5.8
Height1.5840 in
Depth8.5500 in
