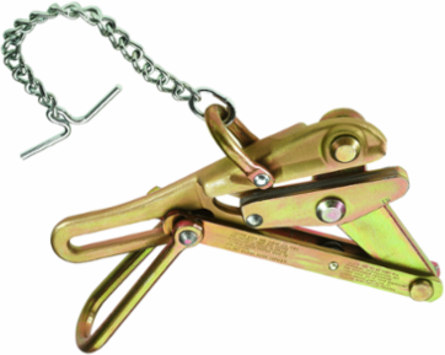

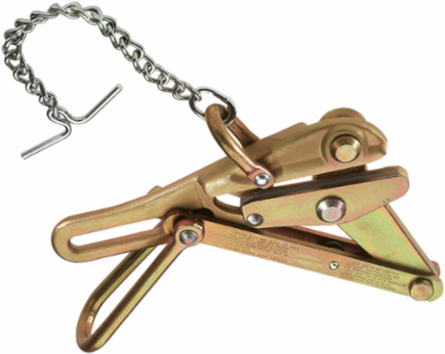

Klein Tools 1692-5AT Chicago Grip Bell-System Type Grip for 0.218 to 0.550 Inch Cables, 8000 lb Load
- MPN: 1692-5AT
- UPC: 092644471858
- PPN: KLT-1692-5AT
- UNSPSC: 46182308
CAD
$1316.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.12-Inch to 1.0-Inch (3.10 to 25.4 mm). Equipped with chain, toggle and shackle. For support wire 0.134-Inch and larger, refer to 1659 series. Outside diameter of support wire includes thickness of polyethylene coating.
Features
- For 0.218 to 0.550-Inch (5.54 to 13.97 mm) diameter cable range with Max Safe Load of 8000-Pound (3629 kg)
- Equipped with chain, toggle and shackle to keep grip from falling off the cable
- Outside diameter of support wire includes thickness of polyethylene coating
- For support wire 0.134 and larger, refer to 1659 series
- Made in USA
Documentation & Downloads
Specifications
Key Specifications
- Type
- Chicago Grip
- Application
- Wire Pulling
- Cable Type
- Messenger, Guy Strand
- Locking Handle
- Yes
- Spring
- Yes
- Teeth Type
- Smooth
- Jaw Length (cm)
- 12.7
- Jaw Length (Inch)
- 5
- Weight (lb)
- 6.6
- Width
- 5.0000 in
- Weight
- 0.1000 lbs
Jaw TypeDouble V
MaterialSteel
Cable Diameter0.218" to 0.55" (5.54 to 13.97 mm)
Hot LatchNo
Swing LatchNo
Weight (kg)3
Maximum Safe Load (kg)3628.7
Maximum Safe Load (lb)8000
Height2.0000 in
Depth10.0000 in
