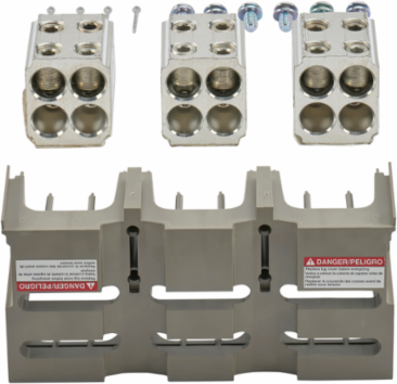

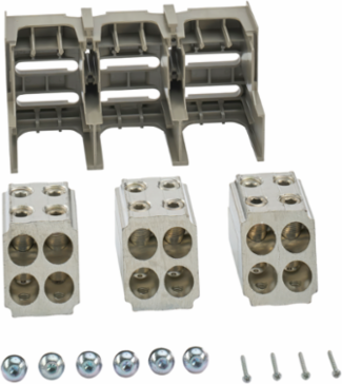

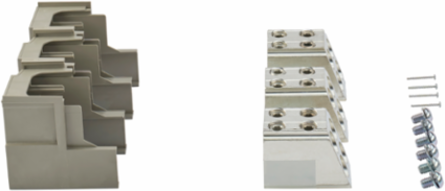

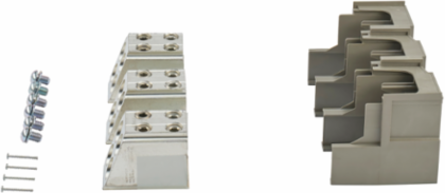

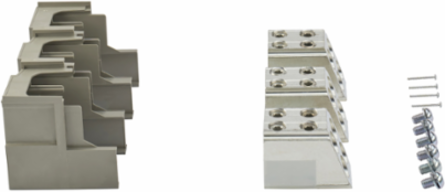

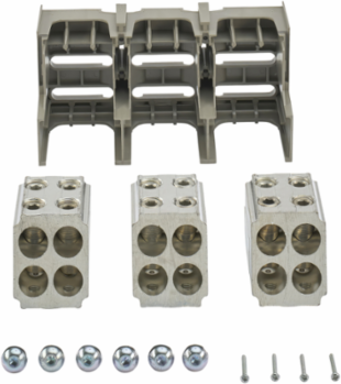

Square D AL1200P25K PowerPact P Lug Kit, 800A-1200A, 3/0 AWG-500kcmil, Set of 3

MPN: AL1200P25K
UPC: 785901506195
PPN: SCH-AL1200P25K

$739.66

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This mechanical lug kit is for PowerPacT P circuit breakers. These aluminum lugs are rated for 800A to 1200A. The lugs accept 3/0 AWG to 500kcmil aluminum and copper conductors. These lugs comply with UL and CSA standards.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Complementary Attributes

Line Rated Current	1200-1200 A

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Location Of Connection	downstream, upstream
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1905
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Material	aluminium
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 3
Returnability	Yes
Tightening Torque	50-50 N.m 95-240 mm² (3/0 AWG...500 kcmil)
Halogen-free Status	Halogen free product
Package Weight(Lbs)	1.891 kg
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	CSA, UL
Local Publishable Date	2026-04-10
Stocking Flag	N
Serviceability	No
Field Service Division	PPIBS
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	3/0 AWG...500 kcmil aluminium/copper
Fixing Mode	by screws
Mounting Mode	unit mount
Product Or Component Type	mechanical lug
Range Of Product	PowerPact P
Sustainable Packaging	No
Accessory / Separate Part Category	connection accessory
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Halogene Performance	Halogen free product
Mercury Free	Yes
Halogen Content Performance	Halogen free product
Packaging Without Single Use Plastic	No

Take Back	No
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
