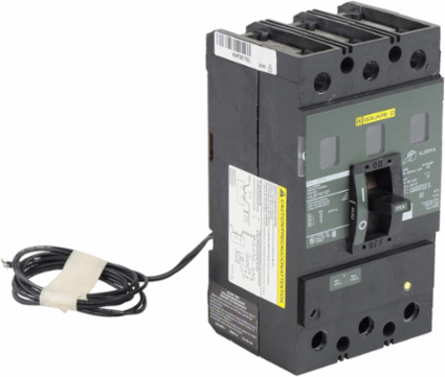

Schneider Electric LAL362251021 Circuit Breaker 225A 3 Pole 600VAC Thermal Magnetic with Lugs
Schneider Electric LAL362251021 Circuit Breaker 225A 3 Pole 600VAC Thermal Magnetic with Lugs
- MPN: LAL362251021
- UPC: 785901119029
- PPN: SCH-LAL362251021
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
This thermal magnetic circuit breaker from Schneider Electric is engineered to provide reliable protection and performance in power distribution applications. With a substantial 225A capacity and a three-pole configuration, it is designed for use in systems operating at up to 600VAC. The inclusion of lugs facilitates straightforward installation, ensuring a secure connection within various electrical setups. Ideal for industrial and commercial environments, this molded case circuit breaker combines durability and efficiency, making it a crucial component for safeguarding electrical circuits against overloads and short circuits.
Specifications
- Amperage
- 225 A
- Number of Poles
- 3P
- Magnetic Tripping Current
- 2250 A
- Electrical Connection
- Lugs, load, line
- Tightening Torque
- 13 N.m
- Height
- 11 in (279.4 mm)
- Depth
- 5.84 in (148.34 mm)
- Certifications
- UL Listed, IEC, CSA
- PVC Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Mounting Mode
- unit mount
- Reach Regulation
- Contains SVHC above threshold
- Eu Rohs Directive
- Compliant with Exemptions
- Rohs Exemption Information
- Yes
Voltage600 VAC
Magnetic Hold Current1125 A
Trip Unit TechnologyThermal-magnetic
Terminal IdentifierAL400LA
Wire Size Range42–304 mm² AWG 1–600 kcmil; 42–127 mm² AWG 1–250 kcmil
Width6 in (152.4 mm)
Circuit Breaker ApplicationHACR rated
Mercury FreeYes
Halogen Content PerformanceHalogen free plastic parts product
Warranty18 months
Product Or Component Typecircuit breaker
Environmental DisclosureENVPEP1410004EN
China Rohs RegulationOut of China RoHS scope
