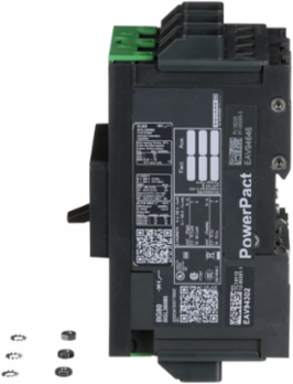

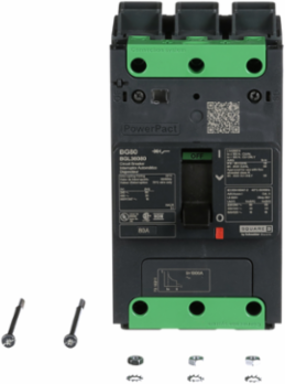

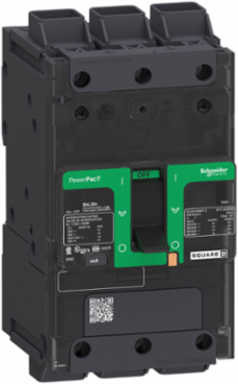

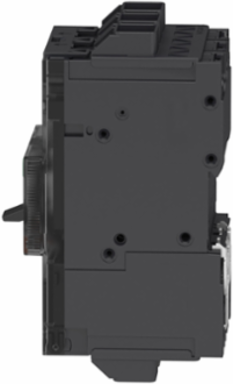

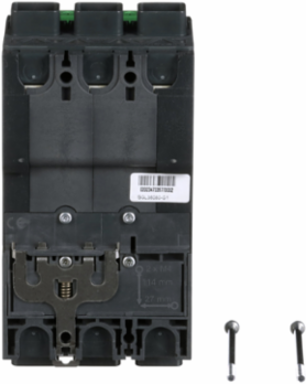

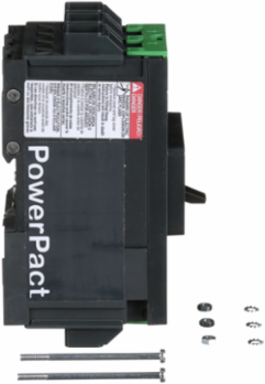

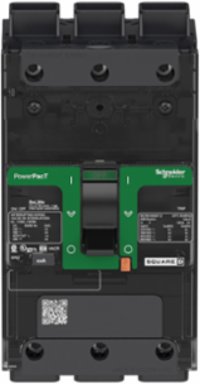

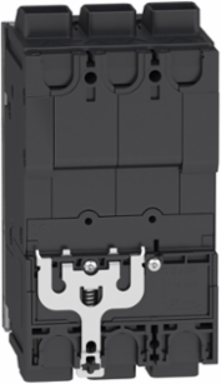

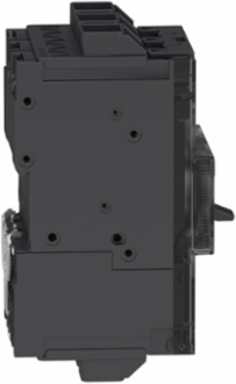

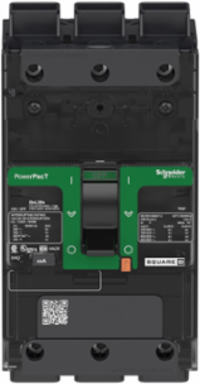

Schneider Electric BGL36080 PowerPact B 80A 3-Pole Circuit Breaker, 600Y/347VAC, 18kA, Thermal Magnetic
- MPN: BGL36080
- PPN: SCH-BGL36080
- UNSPSC: 39121601
CAD
$2740.42
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 80A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Features
- Available in 1, 2, 3, and 4 pole for unit mounts
- Available in 1, 2, and 3 pole for I-Line
- Dual rated AC/DC with 3 levels of breaking capacity
- A wide range of accessories, auxiliaries, and lug connections available
- UL, CSA, NOM, IEC, CCC certified, and CE marked
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 80 mm |
| Weight | 1330 g |
|---|
Physical Attributes
| Color | Gray RAL 7016) |
|---|
| Wire Stripping Length | 20 mm |
|---|
Complementary Attributes
| Ics Rated Service Breaking Capacity | 65 kA 220...240 V AC 50/60 Hz IEC 60947-218 kA 500...525 V AC 50/60 Hz IEC 60947-235 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2 |
|---|---|
| Ue Rated Operational Voltage | 525 V AC 50/60 Hz UL 489 |
| Uimp Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Line Rated Current | 80-80 A |
|---|---|
| Ui Rated Insulation Voltage | 800 V IEC 60947-2 |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electrical Connection | Everlink lug, line, Everlink lug, load |
| Certificate Agency | UL, IEC, CCC, EAC, CSA, NOM |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 2 kg CO2 eq., 2.1975777182170146 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 7 kg CO2 eq., 6.906117954368554 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 6 AWG...2/0 AWG fine stranded aluminium/copper14 AWG...3/0 AWG rigid or stranded aluminium/copper |
| Connection Pitch | 27 mm |
| Control Type | toggle |
| Device Short Name | BG 080 |
| Energy Efficiency Optimized | False |
| Mechanical Durability | 20000 cycles IEC 947-1 Annex K ed 5.2 |
| Network Frequency | 50/60 Hz |
| Number Of Slots | 1 auxiliary switch OF plug-in)1 voltage release MN or MX plug-in)1 alarm switch SD plug-in) |
| Product Name | PowerPact B |
| Quality Labels | CE |
| Range | PowerPact |
| Software Version | v6.2.5-6 |
| Sustainable Packaging | Yes |
| Trip Unit Technology | thermal-magnetic |
| Database Version | 2024-01 |
| Height Nominal | 137 mm |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free product |
| Functional Unit Description | Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 55 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 5-5 N.m 2.5-16 mm² (14 AWG...4 AWG), 9-9 N.m 25-95 mm² (3 AWG...3/0 AWG) |
| Carbon Footprint Of The Distribution Phase A4 | 0, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.3764691440577449, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 326 kg CO2 eq., 325.86084321646615 |
| Local Publishable Date | 2025-11-13 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1909 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Circuit Breaker Application | HACR rated |
| Continuous Current Rating | 80 % |
| Device Application | distribution |
| Electrical Durability | 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In |
| Local Signalling | presence of auxiliary contacts flag green) |

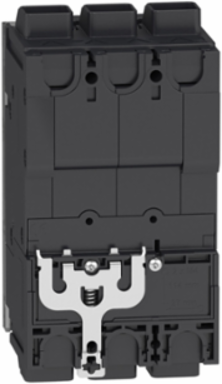

| Mounting Mode | clip-on 35 x 15 mm symmetrical DIN rail)by screws plate) |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | circuit breaker |
| Quantity Per Set | set of 1 |
| Returnability | Yes |
| Suitability For Isolation | yes IEC 60947-2 |
| Total Lifecycle Carbon Footprint | 335 kg CO2 eq. |
| Utilisation Category | category A |
| Data Source | extrapolated product |
| Width Nominal | 81 mm |
| Customs Code | 8536200020 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -50-85 °C, -50-85 °C |
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 335.34100803310946 |
| Environmental Disclosure | ENVPEP2311047EN |
| Halogen Content Performance | Halogen free product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-05-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Operating Altitude | < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating |
| Halogene Performance | Halogen free product |
| Mercury Free | Yes |
| 9 Mm Pitches | 9 |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | front cover IP40 IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2311047EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | circuit breaker |
|---|
