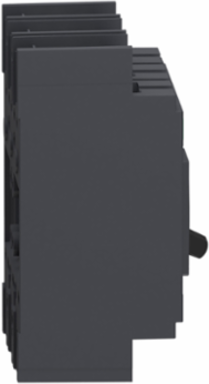

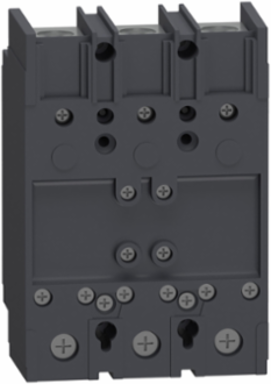

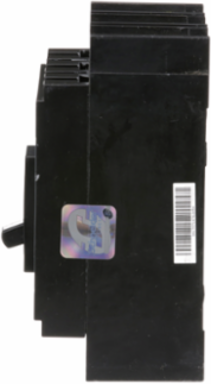

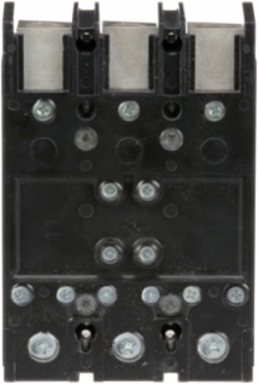

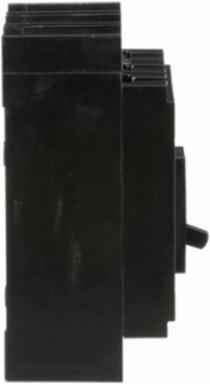

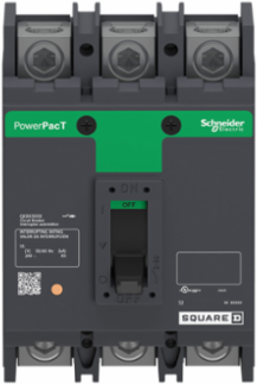

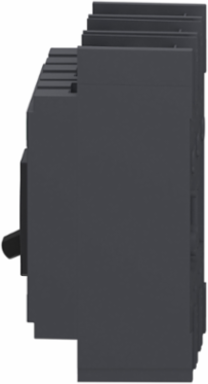

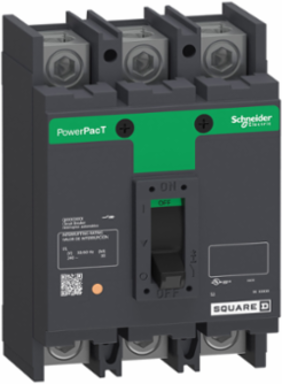

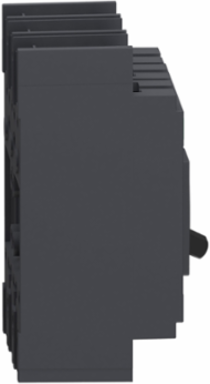

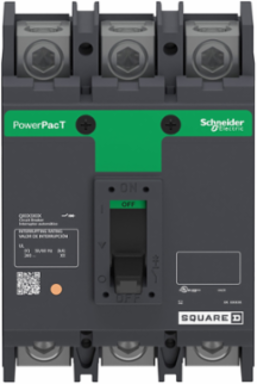

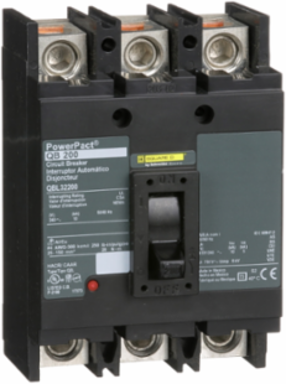

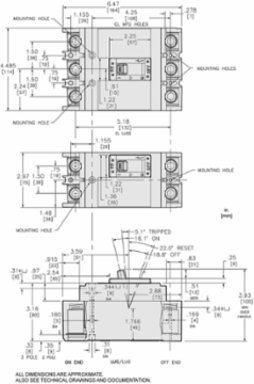

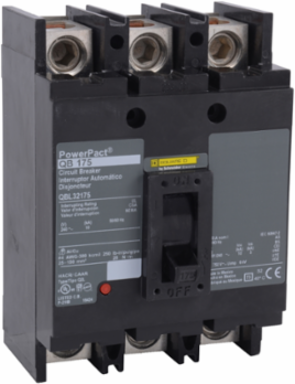

Square D QBL32200 PowerPact Q Circuit Breaker 200A 3 Pole 240VAC 10kA Thermal Magnetic
- MPN: QBL32200
- UPC: 785901417866
- PPN: SCH-QBL32200
CAD
$824.60
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 200A, 3 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Features
- Designed specifically for the Square D PowerPact B-Frame system, this 3-pole unit features a standardized 3-inch width that maximizes space efficiency within your enclosure. The high-performance, unit-mount design ensures a seamless mechanical fit, allowing industrial contractors to quickly swap out older components without the need for extensive cabinet modifications or custom mounting hardware.
- Rated for 200 Amps at up to 240V AC, this thermal-magnetic circuit breaker is engineered to provide reliable power distribution for high-demand industrial motors, commercial HVAC chillers, and large-scale lighting arrays. It delivers a balanced 10kA interrupting rating (AIR), ensuring that your critical three-phase infrastructure is shielded from the damaging effects of sudden short circuits and thermal overloads.
- Equipped with Schneider Electric's patented EverLink terminal system, this breaker maintains a constant, high-pressure connection even as the copper wire "creeps" or expands due to thermal cycling. This advanced lug design eliminates the need for frequent manual retightening, drastically reducing the risk of overheating at the terminal and ensuring long-term electrical stability in vibration-heavy manufacturing environments.
- Featuring versatile mounting options and a common set of field-installable accessories, the QBL32200 is built for rapid deployment across various commercial applications. Its UL-listed and CSA-certified construction guarantees that your electrical system meets the most current NEC safety standards, providing facility managers and engineers with peace of mind that their facility remains fully code-compliant and protected against catastrophic electrical failure.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth3.93 in
Physical Attributes
- Wire Stripping Length
- 22 mm
Complementary Attributes
- Line Rated Current
- 200-, 200 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, load, lugs, line
- Carbon Footprint Of The Distribution Phase [A4]
- 0.6227682622165882, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.41629631278000545, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 41 kg CO2 eq., 40.95182087840389
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1909
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Continuous Current Rating
- 80 %
- Device Application
- distribution
- Local Signalling
- 1 trip indicator green)
- Magnetic Tripping Current
- 2400-2400 A
- Mounting Mode
- unit mount lug)
- Network Frequency
- 50/60 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 60 kg CO2 eq.
- Utilisation Category
- category A
- Pep Code
- ENVPEP2311048EN
- Pep Verification Date
- 2025-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 56
- Width Nominal
- 4.5 in
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV UL
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200020
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL, CSA, NOM
Carbon Footprint Of The End-of-life Phase [C1 To C4]4 kg CO2 eq., 3.637202744852967
Carbon Footprint Of The Manufacturing Phase [A1 To A3]15 kg CO2 eq., 14.769180709888461
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Circuit Breaker ApplicationHACR rated
Control Typeoperating handle
Energy Efficiency OptimizedFalse
Magnetic Hold Current1200 A
Mechanical Durability1000 cycles loaded5000 cycles no load
Mounting Supportlug
Number Of Poles3P
Product NamePowerPact Q
RangePowerPact
Software Versionv6.2.5-6
Tightening Torque28-28 N.m 25-150 mm² (4 AWG...300 kcmil)
Trip Unit Technologythermal-magnetic
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh85.1472
Energy Model - Installation [A5][A5]
Energy Model - End Of Life [C1-c4][C1 - C4]
Height Nominal6.47 in
[Ue] Rated Operational Voltage240 V AC 50/60 Hz UL
Halogen-free StatusHalogen free product
Package Weight(Lbs)2.030 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Halogen free product
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 40-70 °C
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint60.39726890814191
Environmental DisclosureENVPEP2311048EN
Halogen Content PerformanceHalogen free product
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2311048EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
ETIM
- ETIM 8
- EC000228
ETIM 9EC000228
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
