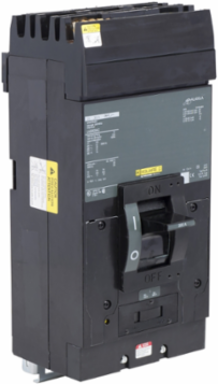

Square D LA26200AC 200A I-Line Circuit Breaker, 2 Pole, 600VAC, Thermal-Magnetic
- MPN: LA26200AC
- UPC: 785901562665
- PPN: SCH-LA26200AC
- UNSPSC: 39121601
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric LA26200AC is a robust 200A I-Line Circuit Breaker, designed for efficient thermal and mechanical protection in power distribution systems. Offering a dual pole configuration and operating at 600VAC, this thermal-magnetic breaker ensures reliability across various industrial applications. Its advanced engineering makes it an essential component for safeguarding electrical circuits, providing peace of mind in demanding environments while meeting the rigorous standards of molded case circuit breakers.
Features
- For manual circuit open or automatic current interruption for overload or short circuit conditions
- Contains thermal sensing for overload and magnetic for short circuit in each pole
- Flexible platform for various types of mounting and terminations
- Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts
- Unit mount and I-Line construction available
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 5.84 in |
| Weight | 6804 g |
|---|
Complementary Attributes
| Line Rated Current | 200 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Tightening Torque | 13-13 N.m 42-304 mm² (1 AWG...600 kcmil), 13-13 N.m 42-127 mm² (1 AWG...250 kcmil) |
| Carbon Footprint Of The Distribution Phase A4 | 1.966271580566898, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 1.8967904693791804, 2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 1 102 kg CO2 eq., 1102.0746377830335 |
| Local Publishable Date | 2025-11-13 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1906 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Circuit Breaker Application | HACR rated |
| Energy Efficiency Optimized | False |
| Magnetic Tripping Current | 2000-2000 A |
| Number Of Poles | 2P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 1 160 kg CO2 eq. |
| Wiring Configuration | 2-wire |
| Data Source | extrapolated product |
| Width Nominal | 6 in |
| Customs Code | 8536200020 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | CSA, UL Listed |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 10 kg CO2 eq., 10.302971150240523 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 44 kg CO2 eq., 43.82880551360121 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Electrical Connection | lugs, loadI-Line connection, line |
| Magnetic Hold Current | 1000 A |
| Mounting Mode | I-Line |
| Phase Connection | AC |
| Product Or Component Type | circuit breaker |
| Software Version | v6.2.5-6 |
| Terminal Identifier | AL400LA |
| Trip Unit Technology | thermal-magnetic |
| Database Version | 2024-01 |
| Height Nominal | 11 in |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free plastic parts product |
| Functional Unit Description | Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 58 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1410004EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP1410004EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Halogene Performance | Halogen free plastic parts product |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 1160.0694764968212 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-06-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | circuit breaker |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
