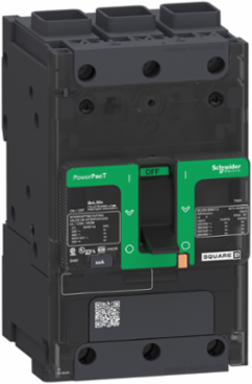

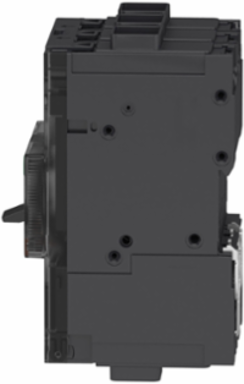

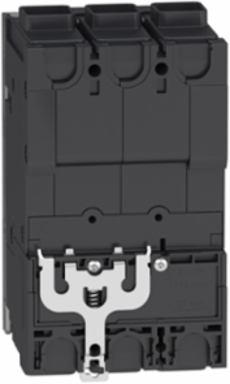

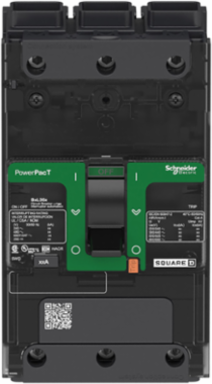

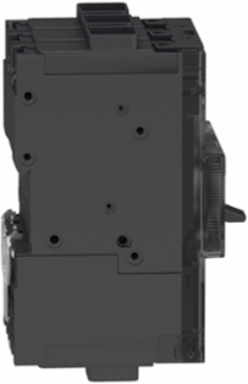

Schneider Electric BGF36100 PowerPacT B Circuit Breaker 100A, 3 Pole, 18kA, Thermal Magnetic
- MPN: BGF36100
- PPN: SCH-BGF36100
CAD
$2740.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This 100A Thermal Magnetic Circuit Breaker from Schneider Electric, part of the PowerPacT B series, is engineered for effective power distribution and robust protection. Featuring a three-pole design and a fault current rating of 18kA, it provides reliable thermal and magnetic protection for various electrical applications. Ideal for installation in industrial settings, this molded case circuit breaker ensures safety and durability, making it a crucial component for modern electrical systems.
Documentation & Downloads
Specifications
Additional
- Amperage
- 100 A
- Breaking Capacity
- 65 kA 208Y/120 V AC 50/60 Hz, 18 kA 600Y/347 V AC
- Trip Unit Technology
- Thermal-magnetic TM-D
- Rated Insulation Voltage
- 800 V
- Electrical Durability
- 10000 cycles
- AWG Gauge
- AWG 14 to AWG 3/0 aluminum/copper
- Electrical Connection
- Terminal nut, ON and OFF end
- Color
- Gray RAL 7016
- Width
- 81 mm (3.19 in)
- Net Weight
- 0.924 kg (2.04 lb)
- IK Degree of Protection
- IK07
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Operating Altitude
- 2000 m (6562 ft) without derating, 5000 m with derating
- Product Certifications
- UL, IEC, CCC, EAC, CSA, NOM
- RoHS
- Compliant with Exemptions
- PVC Free
- Yes
Number of Poles3
Rated Operational Voltage525 V AC 50/60 Hz
Continuous Current Rating80%
Mechanical Durability15000 cycles
Connection Pitch27 mm (1.06 in)
Mounting ModeClip-on 35 mm symmetrical DIN rail, by screws plate
Tightening Torque5 N.m (44.25 lbf.in) AWG 14 to AWG 4, 9 N.m (79.66 lbf.in) AWG 3 to AWG 3/0
Height137 mm (5.39 in)
Depth80 mm (3.15 in)
IP Degree of ProtectionFront cover IP40
Pollution Degree3
Ambient Air Temperature for Storage-50 to 85 °C (-58 to 185 °F)
ComplianceUL 489, IEC 60947-2, CSA C22.2 No 5, GB 14048.2, NMX J-266, NEMA AB1
Circuit Breaker ApplicationHACR rated
Mercury FreeYes
Halogen ContentHalogen free product
