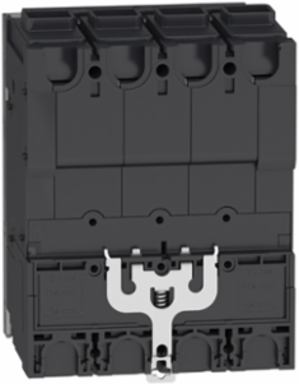

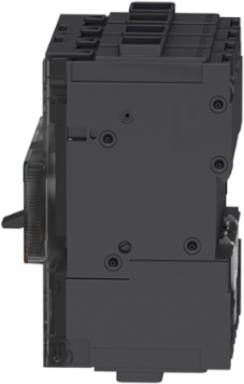

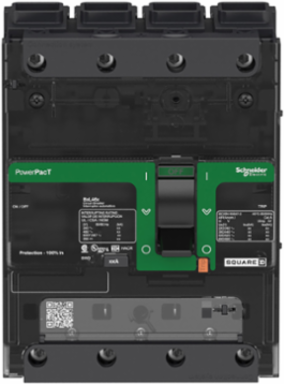

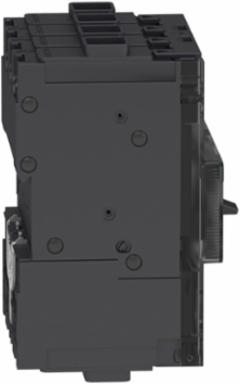

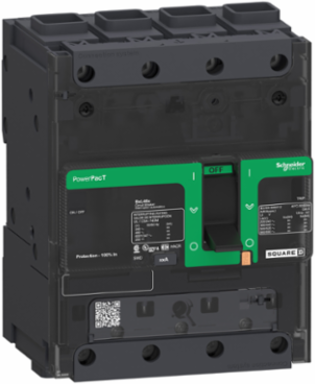

Schneider Electric BDF46030 PowerPacT B Circuit Breaker 30A 4 Pole 600Y/347VAC 14kA
- MPN: BDF46030
- PPN: SCH-BDF46030
CAD
$2257.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for versatile performance in power distribution applications, the PowerPacT B Circuit Breaker by Schneider Electric is a robust solution designed to ensure effective protection in demanding environments. With a 30A capacity and four pole configuration, it operates seamlessly at 600Y/347VAC, providing reliable circuit protection up to a fault current of 14kA. This molded case circuit breaker is particularly well-suited for industrial settings, where safety and efficiency are crucial. Its advanced design supports operational reliability, making it an essential component for comprehensive electrical systems.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Breaking Capacity
- 25 kA 208Y/120 V AC, 18 kA 240 V AC, 25 kA 480/277 V AC, 14 kA 480 V AC, 18 kA 600Y/347 V AC, 14 kA 250 V DC
- Rated Impulse Withstand Voltage
- 8 kV
- Continuous Current Rating
- 80 %
- Suitability for Isolation
- Yes
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Connection Pitch
- 27 mm (1.06 in)
- Local Signalling
- Presence of auxiliary contacts flag green
- Electrical Connection
- Terminal nut, ON and OFF end
- Power Wire Stripping Length
- 20 mm (0.79 in)
- Width
- 108 mm (4.25 in)
- Net Weight
- 1.241 kg (2.74 lb)
- Quality Labels
- CE
- Product Certifications
- UL, IEC, CCC, EAC, CSA, NOM
- IK Degree of Protection
- IK07 IEC 62262
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Operating Altitude
- 2000 m without derating, 5000 m with derating
- REACH Regulation
- Reference contains Substances of Very High Concern above the threshold
- China RoHS Regulation
- Product out of China RoHS scope, substance declaration for information
- PVC Free
- Yes
- Circularity Profile
- No need of specific recycling operations
- Color
- Gray RAL 7016
- Product Name
- PowerPact B
- Device Application
- Distribution
- Protected Poles Description
- 4t
- Trip Unit Name
- TM-D
Voltage525 V AC 50/60 Hz
Rated Service Breaking Capacity25 kA 220-240 V AC, 14 kA 500-525 V AC, 18 kA 380-415 V AC, 18 kA 440 V AC
Trip Unit TechnologyThermal-magnetic TM-D
Rated Insulation Voltage800 V
Utilisation CategoryCategory A
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
AWG GaugeAWG 14-8 aluminum/copper, AWG 6-3/0 aluminum/copper
Mounting ModeClip-on 35 mm symmetrical DIN rail, by screws plate
Tightening Torque5-5 N.m (2.5-16 mm² AWG 14-4), 9-9 N.m (25-95 mm² AWG 3-3/0)
Height137 mm (5.39 in)
Depth80 mm (3.15 in)
Circuit Breaker ApplicationHACR rated
StandardsEN/IEC 60947-5-1, NMX J-266, EN/IEC 60947-2, NEMA AB1, UL 489, GB 14048.2, CSA C22.2 No 5
IP Degree of ProtectionFront cover IP40 IEC 60529
Pollution Degree3 IEC 60947-1
Ambient Air Temperature for Storage-50 to 85 °C (-58 to 185 °F)
RoHS DirectiveCompliant with Exemptions
Mercury FreeYes
RoHS Exemption InformationYes
Halogen Content PerformanceHalogen free product
WEEEDisposed following EU waste collection rules
RangePowerPact
Device Short NameBD 030
Number of Poles4P
Control TypeToggle
Quantity Per Set1
