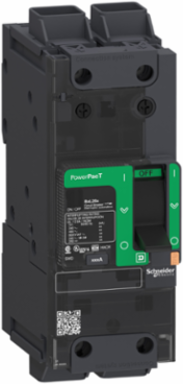

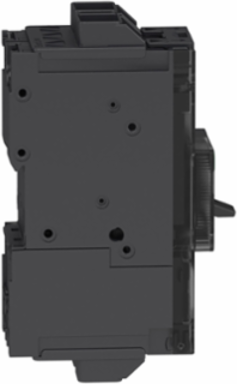

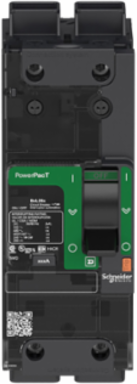

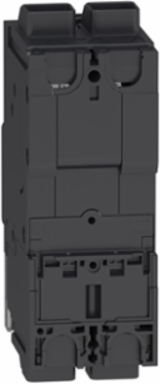

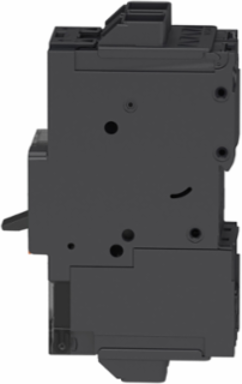

Schneider Electric BGL26025 PowerPact B Circuit Breaker, 25A, 2 Pole, 18kA, Thermal Magnetic, Clip-On
- MPN: BGL26025
- UPC: 785901073086
- PPN: SCH-BGL26025
- UNSPSC: 39121601
CAD
$1940.51
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 25A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
| Length | 20 mm |
|---|---|
| Height | 137 mm |
| Product Or Component Type | circuit breaker |
| Range | PowerPact |
| Device Short Name | BG 025 |
| Width | 54 mm |
|---|---|
| Weight | 0.769 kg |
| Product Name | PowerPact B |
| Device Application | distribution |
Complementary
| Mounting Mode | clip-on 35 x 15 mm symmetrical DIN rail) || by screws plate) |
|---|---|
| [Ics] Rated Service Breaking Capacity | 65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2 |
| Height | 137 mm |
| [Ue] Rated Operational Voltage | 525 V AC 50/60 Hz UL 489 |
| Breaking Capacity Code | G |
| Local Signalling | presence of auxiliary contacts flag green) |
| Electrical Connection | Everlink lug, line || Everlink lug, load |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Circuit Breaker Application | HACR rated |
| Line Rated Current | 25-25 A |
| Continuous Current Rating | 80 % |
| [Ui] Rated Insulation Voltage | 800 V IEC 60947-2 |
| Suitability For Isolation | yes IEC 60947-2 |
| Poles Description | 2P |
| Awg Gauge | AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper |
| Width | 54 mm |
| Network Frequency | 50/60 Hz |
|---|---|
| Trip Unit Technology | thermal-magnetic |
| Connection Pitch | 27 mm |
| Tightening Torque | 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0) |
| 9 Mm Pitches | 6 |
| Number Of Slots | 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) |
| Net Weight | 0.769 kg |
| Control Type | toggle |
| Wire Stripping Length | 20 mm |
| Utilisation Category | category A |
| Breaking Capacity | 65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 250 V DC UL 489 || 20 kA 600Y/347 V AC 50/60 Hz UL 489 |
| Mechanical Durability | 20000 cycles IEC 947-1 Annex K ed 5.2 |
| Electrical Durability | 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In |
| Quantity Per Set | set of 1 |
| Color | Gray RAL 7016) |
| Depth | 80 mm |
Environment
| Ik Degree Of Protection | IK07 conforming to IEC 62262 |
|---|---|
| Standards | UL 489 || EN/IEC 60947-5-1 || EN/IEC 60947-2 || NMX J-266 || NEMA AB1 || CSA C22.2 No 5 || GB 14048.2 |
| Ip Degree Of Protection | front cover IP40 IEC 60529 |
| Ambient Air Temperature For Storage | -50-85 °C |
| Operating Altitude | < 6561.68 ft (2000 m) without derating || 5000 m with derating |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Product Certifications | UL || IEC || CCC || EAC || CSA || NOM |
| Pollution Degree | 3 IEC 60947-1 |
| Quality Labels | CE |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1610005EN |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Circularity Profile | N/A |
| Halogen Content Performance | Halogen free product |
