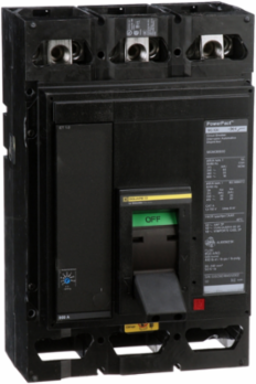

Square D MGM36800 PowerPact M Circuit Breaker 800A, 3 Pole, 600VAC, 18kA, ET 1.0
- MPN: MGM36800
- UPC: 785901480396
- PPN: SCH-MGM36800
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This circuit breaker has an electronic trip unit, ET 1.0. This unit has lugs on the line side and terminal nuts on the load side. This PowerPacT M, 800A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|

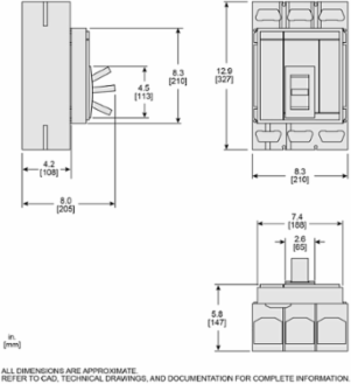

| Depth | 8.05 in |
|---|
Physical Attributes
| Color | Black |
|---|
| Wire Stripping Length | 25 mm |
|---|
Complementary Attributes
| Line Rated Current | 800-800 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Number Of Slots | 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 voltage release MN or MX plug-in) |
| Carbon Footprint Of The Distribution Phase [A4] | 3.6912385212494114, 4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 3.678257944824615, 4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 1 338 kg CO2 eq., 1338.220367484766 |
| Local Publishable Date | 2026-01-21 |
| Stocking Flag | N |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Circuit Breaker Application | HACR rated |
| Control Type | operating handle |
| Electrical Connection | lugs, lineterminal nut, load |
| Local Signalling | 1 trip indicator green) |
| Mounting Mode | unit mount lug) |
| Network Frequency | 50/60 Hz |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | circuit breaker |
| Quantity Per Set | 1 |
| Returnability | Yes |
| Suitability For Isolation | yes IEC 60947-2 |
| Terminal Identifier | AL800M23K |
| Total Lifecycle Carbon Footprint | 1 448 kg CO2 eq. |
| Trip Unit Technology | electronic, basic, ET 1.0, |
| Pep Code | ENVPEP2206030EN |
| Pep Verification Date | 2025-06-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | [A5] |
| Energy Model - End Of Life [C1-c4] | [C1 - C4] |
| Height Nominal | 12.86 in |
| [Ics] Rated Service Breaking Capacity | 25 kA 240 V AC 50/60 Hz IEC 60947-220 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| [Ui] Rated Insulation Voltage | 750 V IEC 60947-2 |
| Long Time Pick-up Adjustment Range | 300...800 A |
| Package Weight(Lbs) | 12.723 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL, CSA, NOM |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 19 kg CO2 eq., 19.462850866984486 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 83 kg CO2 eq., 82.94741507220526 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2206030_V2 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2542 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 3 x 3/0 AWG...3 x 500 kcmil aluminium/copper |
| Continuous Current Rating | 80 % |
| Device Application | distribution |
| Energy Efficiency Optimized | False |
| Magnetic Tripping Current | 1600-8000 A |
| Mounting Support | lug |
| Number Of Poles | 3P |
| Product Name | PowerPact M |
| Quality Labels | CE |
| Range | PowerPact |
| Software Version | v6.2.5-6 |
| Sustainable Packaging | Yes |
| Tightening Torque | 50-50 N.m 95-240 mm² (3 x 3/0 AWG...3 x 500 kcmil) |
| Trip Unit Name | ET 1.0 |
| Utilisation Category | category A |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 57 |
| Width Nominal | 8.27 in |
| [Ue] Rated Operational Voltage | 600 V AC 50/60 Hz UL 489 |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536200020 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -50-85 °C, -50-85 °C |
| Take Back | No |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2206030_V2 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-06-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Operating Altitude | < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating13123.36 ft (4000 m) with derating |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 1448.00012989003 |
| Environmental Disclosure | ENVPEP2206030EN |
| Ip Degree Of Protection | IP40 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2206030EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | circuit breaker |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
