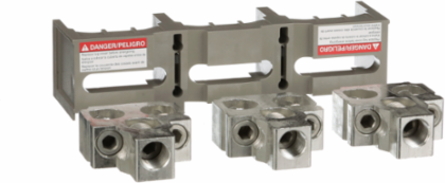

Square D AL800M23K Mechanical Lug Kit for PowerPacT M/P, 800A, 500 kcmil, Aluminium

MPN: AL800M23K
UPC: 785901463764
PPN: SCH-AL800M23K
UNSPSC: 39121601

$437.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This mechanical lug kit is for PowerPacT P circuit breakers. The lugs are rated for 800A. The lugs accept 3/0 AWG to 500kcmil aluminum conductors. These lugs comply with UL and CSA standards.

Features

PowerPacT P aluminum mechanical lugs kit 800A, 3 pieces per kit
Lugs are made of tin-plated aluminum which allows to use them with aluminum and Copper conductors
Mechanical lugs are for use with unit mount PowerPact P breakers for line, load sides or for load side of I-line breaker
Terminal data for this lugs is (3) 3/0 AWG–500 kcmil (95–250 mm2) aluminum or copper
All lugs are UL Listed and CSA certified for their proper application

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Costa Rica

Complementary Attributes

Line Rated Current	800-800 A

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Location Of Connection	downstream, upstream
Range Of Product	PowerPact M, PowerPact P
Local Data Status	Publishable
Return Indicator	Y
Traceability	No
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2542
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	3
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 3
Sustainable Packaging	No
Accessory / Separate Part Category	connection accessory
Customs Code	8536908585

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Mounting Mode	unit mount, I-Line
Certificate Agency	UL, CSA
Local Publishable Date	2026-08-27
Serviceability	No
Field Service Division	PPIBS
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	3
Function Option	Standard
Awg Gauge	3/0 AWG...500 kcmil aluminium/copper
Material	aluminium
Product Or Component Type	mechanical lug
Returnability	Yes
Tightening Torque	50-50 N.m 95-240 mm² (3/0 AWG...500 kcmil)
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No

Take Back	No
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
