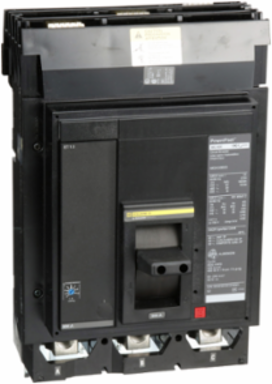

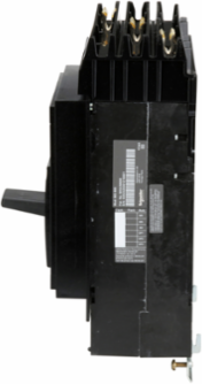

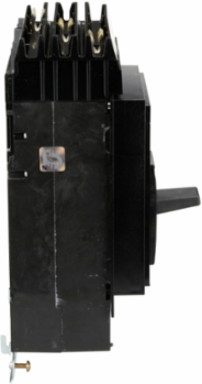

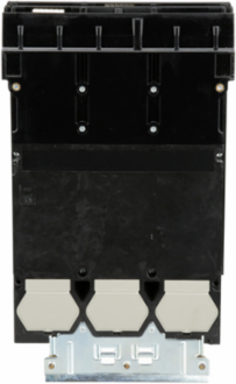

Square D MGA36600 PowerPact M Circuit Breaker, 600A, 3 Pole, 600VAC, ET 1.0, 18kA
- MPN: MGA36600
- UPC: 785901428749
- PPN: SCH-MGA36600
- UNSPSC: 39121601
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT M, 600A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
| Length | 25 mm |
|---|---|
| Height | 9 in |
| Product Or Component Type | circuit breaker |
| Range | PowerPact |
| Width | 8.27 in |
|---|---|
| Weight | 29 lb(US) |
| Product Name | PowerPact M |
| Device Application | distribution |
Complementary
| Mounting Mode | I-Line bracket) |
|---|---|
| Terminal Identifier | AL800M23K |
| Trip Unit Technology | electronic, basic, ET 1.0, |
| Height | 12.86 in |
| Tightening Torque | 50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil) |
| Breaking Capacity Code | G |
| Local Signalling | 1 trip indicator green) |
| Electrical Connection | I-Line connection, line || lugs, load |
| Net Weight | 29 lb(US) |
| Control Type | operating handle |
| Wire Stripping Length | 25 mm |
| Utilisation Category | category A |
| Continuous Current Rating | 80 % |
| [Ui] Rated Insulation Voltage | 750 V IEC 60947-2 |
| Poles Description | 3P |
| Awg Gauge | 3 x AWG 3/0...3 x 500 kcmil aluminium/copper |
| Width | 8.27 in |
| Network Frequency | 50/60 Hz |
|---|---|
| [Ics] Rated Service Breaking Capacity | 25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| Trip Unit Name | ET 1.0 |
| [Ue] Rated Operational Voltage | 600 V AC 50/60 Hz UL 489 |
| Mounting Support | bracket |
| Magnetic Tripping Current | 1200-6000 A |
| Number Of Slots | 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in) |
| Mounting Height | 9 in |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Circuit Breaker Application | HACR rated |
| Line Rated Current | 600-600 A |
| Long Time Pick-Up Adjustment Range | 300...800 A |
| Breaking Capacity | AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| Suitability For Isolation | yes IEC 60947-2 |
| Quantity Per Set | 1 |
| Color | Black |
| Depth | 8.05 in |
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Product Certifications | UL || CSA || NOM |
| Pollution Degree | 3 IEC 60947-1 |
| Quality Labels | CE |
| Standards | UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2 |
|---|---|
| Ip Degree Of Protection | IP40 |
| Ambient Air Temperature For Storage | -50-85 °C |
| Operating Altitude | < 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP2206030EN |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Circularity Profile | ENVEOLI2206030EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
