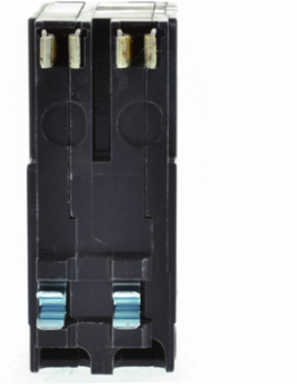

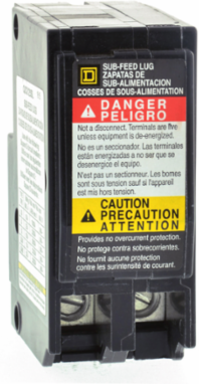

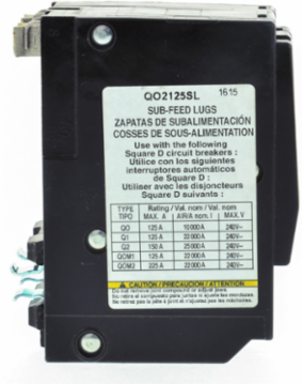

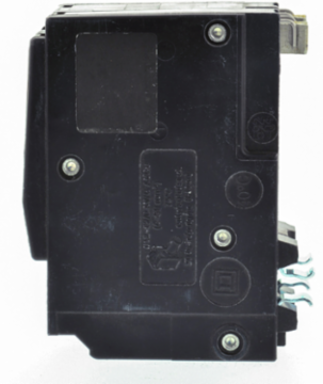

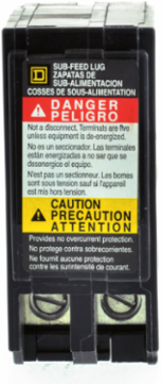

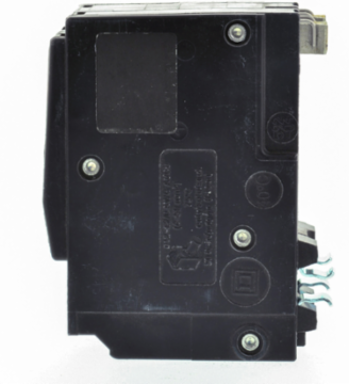

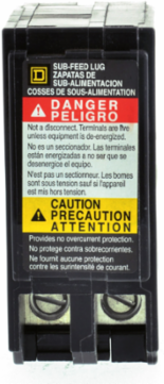

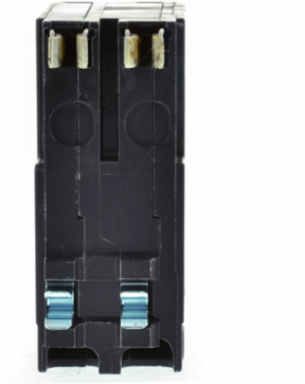

Square D QO2125SL Mini Circuit Breaker Lug Kit, 125A, 2 Pole, 2 Spaces, 240V AC
- MPN: QO2125SL
- UPC: 785901031154
- PPN: SCH-QO2125SL
CAD
$281.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO and QOB miniature circuit breaker subfeed lug kit is rated for 125 A, 2 pole, and 2 spaces. Lugs will accept 12 AWG to 2/0 AWG aluminum or copper wire.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth2.310 in
Complementary Attributes
- Line Rated Current
- 125 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Certificate Agency
- CSA, cURus
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0497519634
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.5902628314
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Number Of Poles
- 2
- Phase
- 2 phases
- Product Or Component Type
- lug kit
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2111016EN
- Pep Verification Date
- 2021-11-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
- Height Nominal
- 3.500 in
- [Ue] Rated Operational Voltage
- 240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908120
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The Distribution Phase [A4]0.0351143742, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0000679824, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]17 kg CO2 eq., 17.3042434783
Local Publishable Date2026-07-14
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2534
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Awg Gauge12 AWG...2/0 AWG copper or aluminium
Mounting Modeplug-in
Number Of Spaces2
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Software VersionEIME v5.9.1
Total Lifecycle Carbon Footprint19 kg CO2 eq.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh24.8784
Energy Model - Installation [A5]Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Width Nominal1.494 in
Halogen-free StatusHalogen free product
Package Weight(Lbs)272.155 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2111016EN
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2111016EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Halogene PerformanceHalogen free product
Toxic Heavy Metal FreeYes
Carbon Footprint18.9794406296
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2021-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 2 phases
- Range Of Product
- QO
Product Or Component Typelug kit
ETIM
- ETIM 8
- EC002287
ETIM 9EC002287
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
