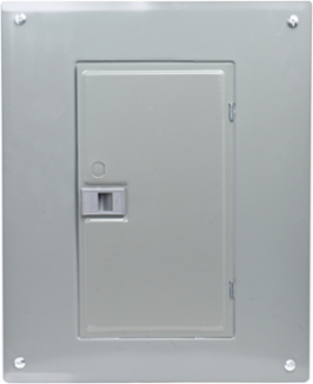

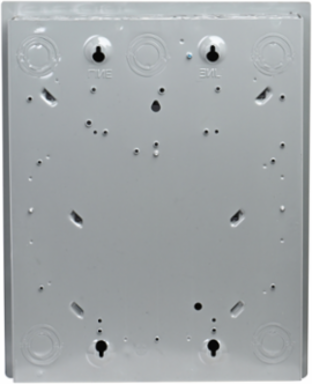

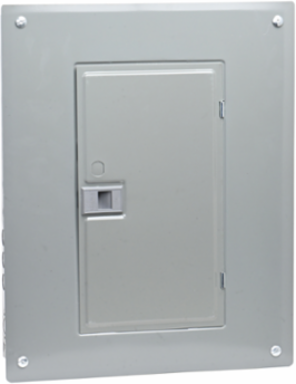

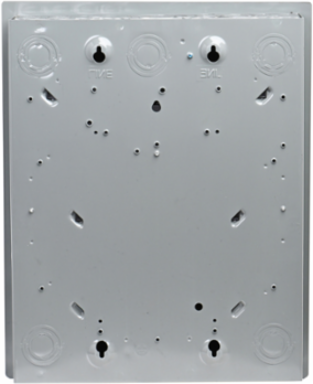

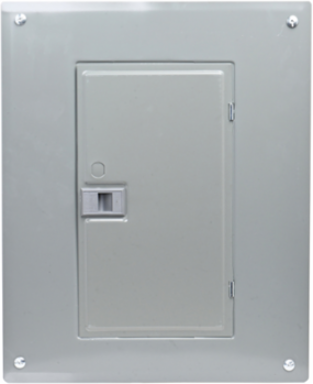

Square D CQO112L100PGC QO Loadcentre 1 Phase 12 Spaces 100A NEMA 1 CSA Certified
- MPN: CQO112L100PGC
- UPC: 785901970774
- PPN: SCH-CQO112L100PGC
CAD
$146.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

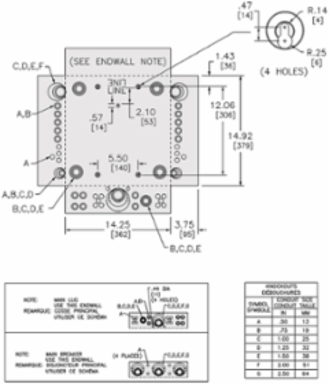

QO loadcentres offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO loadcentres are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO loadcentres enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO loadcentre is supplied with a convertible main that is rated at 100A 240 VAC single phase. This QO loadcentre provides a 65 kA breaking capacity. This system provides 12 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. A ground bar is included but is to be field installed. This QO loadcentre has a height of 17.92 inches, a width of 14.25 inches and a depth of 3.75 inches. QO loadcentre is CSA certified.
Features
- Featuring a dedicated silver-plated neutral bar, this QO load center allows for the direct installation of Plug-on Neutral CAFI and DFCI breakers. By eliminating the need for pigtail wiring, you reduce gutter clutter, minimize wiring errors, and cut down on labor time by up to 20% on every job.
- This 100-Amp load center comes pre-equipped with a factory-installed ground bar and "L" lugs for quick, straightforward incoming power connection. This integrated design saves you from purchasing separate components and ensures your installation is immediately compliant with NEC grounding requirements for sub-panel or main distribution applications.
- Engineered with a narrow-profile NEMA 1 indoor enclosure, this panel provides 12 full-sized spaces for QO circuit breakers without the bulk of larger contractor-grade panels. It is the ideal solution for modernizing electrical systems in apartments, home additions, or workshop retrofits where wall space is at a premium.
- Designed exclusively for Square D QO "The World's Finest" breakers, this panel supports the Visi-Trip red-flag indicator system. This allows homeowners and facility managers to instantly identify a tripped circuit at a glance, removing the guesswork from troubleshooting and ensuring a faster return to power during an overload event.
- This load center includes a factory-installed shield over the main lugs to prevent accidental contact with live energized parts. This enhanced safety feature protects DIYers and professionals alike during maintenance and ensures the unit meets rigorous UL 67 and CSA standards for residential and light commercial power distribution.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth95 mm
Complementary Attributes
- Line Rated Current
- 100 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Carbon Footprint Of The Distribution Phase [A4]
- 3.833325, 4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0089478794, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.1 kg CO2 eq., 0.087341
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- N
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Cover Type
- combination flush/surface cover
- Electrical Connection
- lugs
- Energy Efficiency Optimized
- False
- Load Center Type
- PoN Convertible Mains (lugs)
- Number Of Circuits
- 24
- Number Of Tandem Circuit Breakers
- 12
- Product Availability
- Stock - Normally stocked in distribution facility
- Provided Equipment
- grounding bar
- Returnability
- Yes
- Surface Finish
- baked enamel Gray
- Tightening Torque
- main lugs 50 lb.in, 6 AWG...2/0 AWG, aluminium/copper
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Lexington
- Energy Model - Use [B6]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Recyclability Potential In %
- 88
- Width Nominal
- 362 mm
- [Ue] Rated Operational Voltage
- 240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 7.4172
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1.1052
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1.1052
- Water Pollution (M3) Operational Energy Use [B6]
- 4.3059
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.1889727941
Carbon Footprint Of The Manufacturing Phase [A1 To A3]82 kg CO2 eq., 81.8314411765
Local Data StatusPublishable
Return IndicatorY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationResidential
Awg Gauge14 AWG...1/0 AWG copper12 AWG...1/0 AWG aluminium
Device Compositiongrounding bar included (not installed)
Enclosure Materialwelded sheet steel
Installation Directionvertical
Materialtin plated copper: busbar
Number Of Spaces12
Phase1 phase
Product Or Component TypeLoad Center
Range Of ProductQO
Software VersionEIME v5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint87 kg CO2 eq.
Pep CodeENVPEP2212001EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal455 mm
Certificate AgencyCSA
Short-circuit Current65 kA
Package Weight(Lbs)11.34 kg
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1.0634
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1.1758
Water Pollution (M3) Manufacturing [A1-a3]3900.15
Customs Code8537109150
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2212001EN
- Nema Degree Of Protection
- NEMA 1 indoor enclosure
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2212001EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint86.95002785
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase
- Provided Equipment
- grounding bar
Product Or Component TypeLoad Center
Range Of ProductQO
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
