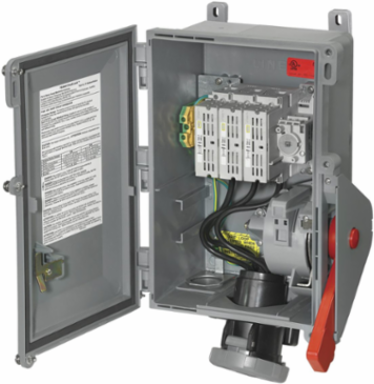

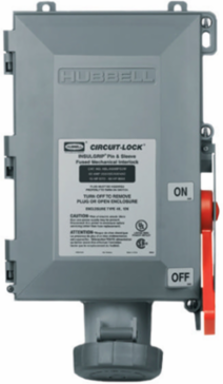

Hubbell Wiring Device-Kellems HBL430MIF5W Industrial Grade 30A 3-Pole 4-Wire Fused Socket 600V AC
- MPN: HBL430MIF5W
- UPC: 783585405933
- PPN: HBL-HBL430MIF5W
- UNSPSC: 39121406
CAD
$3776.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Fused Mechanically Interlocked Receptacle, 30A 3-Phase Delta 600 V AC, 3-Pole 4-Wire Grounding
Features
- Replaceable spring-loaded receptacle liftcover with gasket
- Removable door for ease of wiring and installation
- Plug-Check™ mechanism to detect the presence of plug
- Watertight
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL430MIF5W AutoCAD Drawing
- General Literature Asset 2 Display Text
- Improved Short Circuit Current Ratings (SCCR)
- Country of Origin
- United States
- Width
- 12.200 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max Working Voltage - 600V AC;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP66 Suitability;Environmental - Operating Temperatures - Max. Continuous +75°C;Min. Continuous -40°C;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustment feet;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
- Application
- High Ampacity Connections
- Environmental Conditions
- Watertight
- Number of Poles
- 3-Pole
- Phase
- Three Phase
- Standard
- CSA Certified;UL Listed for US and Canada
- Voltage Rating
- 3 Phase 600 VAC
- Wire Size
- #12 AWG to #8 AWG
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Wires
- 4-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 430MIF5W
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585405933
- Lowest Level UOM
- Each
General Literature Asset 1 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
General Literature Asset 3 Display TextIEC Pin & Sleeve Devices
Current / Amperage Rating30 A
Industry Standard(s)CSA Certified;UL Listed for US and Canada
Amperage Rating30 A
ColorBlack
NEMA RatingNon-NEMA
Number of Wires4-Wire
Special FeaturesWatertight
TypeMechanical Interlock
Wattage18000
Voltage Rating Description3 Phase 600 VAC
Display SizeStandard Sized Product
Number Of Poles3-Pole
StyleStandard Service
Description - InvoicePS, IEC, MECHINT, 3P4W, 30A 3P 600V,FUSE
Harmonization Code8537109999
MSDS FlagNo
Sub Class CodeA12A210
Current Rating30 A
SeriesFused
BOX SIZE(in)
Each - Pack DescriptionEach
NAICS Code335931A104
Certifications
- EU RoHS Indicator
- No
