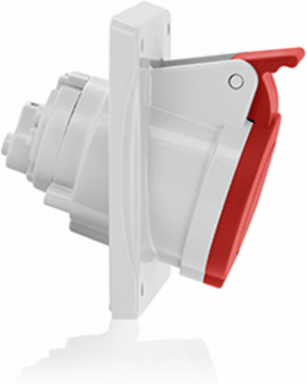

Leviton S332-R11 International Pin & Sleeve Outlet 32 Amp, 440-460 Volt, IP44, Industrial Grade, Red
- MPN: S332-R11
- UPC: 078477678756
- PPN: LEV-S332-R11
CAD
$178.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

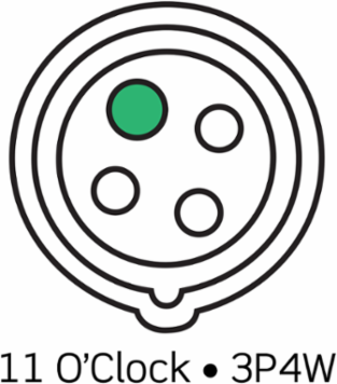

32 Amp, 440-460 Volt, 3P+E (3P, 4W), Clock Position 11, IEC/EN 60309-1 & 60309-2, International Configuration Panel Mounting Socket Outlet, Industrial Grade, IP44, Splashproof - RED
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Slovakia |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| CE | Marked |
|---|---|
| NOM Certified | Yes |
| IEC Rating | 60309-1 and 60309-2 |
|---|---|
| RETIE Certified | Yes |
Material Specifications
| Contacts | Nickel Plated Brass |
|---|
| Housing | Halogen-free engineering polymer |
|---|
Mechanical Specifications
| Terminal Accom. | 14-8 AWG |
|---|
Product Features
| Color | Red |
|---|---|
| Device Type | Receptacle |
| Configuration | International |
|---|
Environmental Specifications
| IK Rating | IK08 |
|---|---|
| Operating Temperature | -25°C to 40°C |
| IP Rating | IP44 |
|---|
Electrical Specifications
| Amperage | 32 A |
|---|---|
| Pole | 3 |
| Wire | 4 |
| Frequency | 60Hz |
|---|---|
| Voltage | 440-460 VAC |
