Leviton

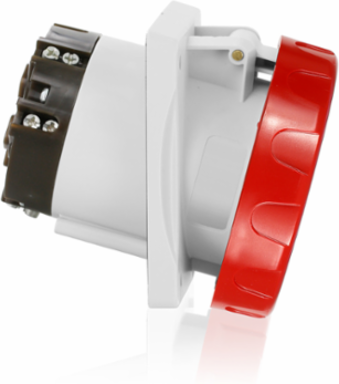

Leviton W463-R6 Industrial Grade International Pin & Sleeve Receptacle, 63 Amp, 346-415 Volt, IP66/67

Industrial Grade International Pin & Sleeve Receptacle, 63 Amp, 346-415 Volt, IP66/67
Industrial Grade International Pin & Sleeve Receptacle, 63 Amp, 346-415 Volt, IP66/67
  • MPN: W463-R6
  • UPC: 078477679098
  • PPN: LEV-W463-R6

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$194.29/ EA

Description

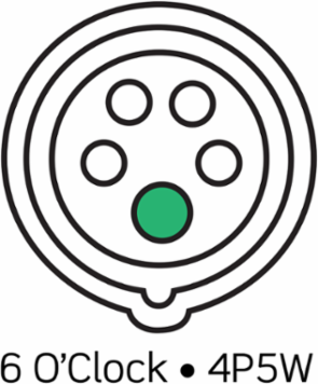

63 Amp, 346-415 Volt, 3P+N+E (4P, 5W), Clock Position 6, IEC/EN 60309-1 & 60309-2, International Configuration Panel Mounting Socket Outlet, Industrial Grade, IP66/67, Watertight - RED

Specifications

Standards and Certifications

CE
Marked
NOM Certified
Yes
IEC Rating60309-1 and 60309-2
RETIE CertifiedYes

Material Specifications

Contacts
Nickel Plated Brass
HousingHalogen-free engineering polymer

Mechanical Specifications

Terminal Accom.
#10 - #4 AWG

Specifications

Country of Origin
Italy
RoHS CompliantTrue

Product Features

Color
Red
Device Type
Receptacle
ConfigurationInternational

Environmental Specifications

IK Rating
IK08
Operating Temperature
-25°C to 40°C
IP RatingIP66/IP67

Electrical Specifications

Amperage
63 A
Pole
4
Wire
5
Frequency50/60Hz
Voltage346-415 VAC

Downloads
