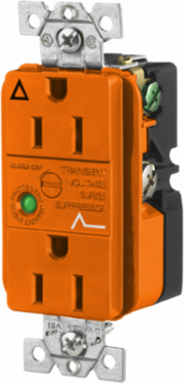

Bryant SP52IGOA Surge Suppression Receptacle, 15A 125V, Isolated Ground, 5-15R, Orange
Bryant SP52IGOA Surge Suppression Receptacle, 15A 125V, Isolated Ground, 5-15R, Orange
- MPN: SP52IGOA
- UPC: 781786139114
- PPN: HBL-SP52IGOA
- UNSPSC: 39121610
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$208.31/ EA
Description
Circuit Watch Surge Suppression Straight Blade Receptacle, Industrial/Commercial Grade, Isolated Ground, 15A 125V, 2- Pole 3-Wire Grounding, 5-15R, Orange
Features
- Isolated Ground
- 15A 125V
- 2- Pole 3-Wire Grounding
- 5-15R
- Orange
- Commercial Specification Grade
Specifications
Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 15 A
- Amperage Rating
- 15 A
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Phase
- Single Phase
- Special Features
- Commercial Specification Grade
- Voltage Rating
- 125 V
- General Literature Asset 1 Display Text
- General Literature - Surge Protection Devices
- General Literature Asset 3 Display Text
- General Literature - Duplex Surge Receptacles
- Display Size
- Standard
- Style
- Isolated Ground
- Description - Invoice
- DUP SPD RCPT, IG, 15A 125V, 5-15R,OR
- Harmonization Code
- 8536308000
- MSDS Flag
- No
- Material - Mounting Hardware
- Mounting Screws
- Indicator(s) Type
- LED and Audible Alarm
- Series
- Specification Grade
- BOX SIZE
- 3.868x11.048x4.298 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786139114
- Case Weight
- 12.500 lb.
- Lowest Level UOM
- Each
ColorOrange
Width2.200 in
ApplicationIG Duplex with Light and Alarm
Frequency Rating60 Hz
OutletStraight Blade
Response Time5
TypeDuplex Receptacle
Voltage Rating Description125 V
General Literature Asset 2 Display TextGeneral Literature - Power Disruption Solutions
ConnectivityTerminal Screws
Nema Rating5-15R
Class CodeNormal and Common Mode
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA44A420
Current Rating15 A
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.050 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
