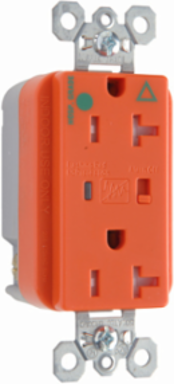

Pass & Seymour TRIG8300OSP Tamper-Resistant Surge Protective Duplex Receptacle, 20Amp 125Volt, Orange
- MPN: TRIG8300OSP
- UPC: 785007020137
- PPN: P-S-TRIG8300OSP
- UNSPSC: 39121406
CAD
$134.08
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Tamper-Resistant Surge Protective Duplex Receptacle, 20Amp 125Volt, Orange
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Product Line | Pass & Seymour |
| Phase | Single |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
| Is Tamper-Resistant | Yes |
| Connection Location | Back and Side |
| Wire Size | 14 - 10 AWG |
| Wall Plate Included | No |
| Features | Indicator Lights; Single Piece Plated Steel Mounting Strap; Surge Protection; Audible Alarm |
| Number of Poles | Double Pole |
| Color | Orange |
|---|---|
| Amperage | 20.0 A |
| Environmental Conditions | UL94 V2 |
| NEMA Configuration Code | 5-20R |
| Outlet Type | Tamper-Resistant; Isolated Ground |
| Number of Receptacles | 2.0 |
| Voltage | 125.0 V |
| Indoor/Outdoor | Indoor |
| Application Sector | Commercial; Multi-Dwelling Unit; Residential |
| Number of Wires | 3.0 |
