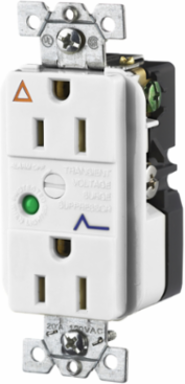

Bryant SP52IGWA Circuit Watch Isolated Ground Receptacle, 15A 125V, 2-Pole, 5-15R, White
- MPN: SP52IGWA
- UPC: 781786139138
- PPN: HBL-SP52IGWA
- UNSPSC: 39121610
CAD
$212.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Circuit Watch Surge Suppression Straight Blade Receptacle, Industrial/Commercial Grade, Isolated Ground, 15A 125V, 2- Pole 3-Wire Grounding, 5-15R, White
Features
- Isolated Ground
- 15A 125V
- 2- Pole 3-Wire Grounding
- 5-15R
- White
- Commercial Specification Grade
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 15 A
- Amperage Rating
- 15 A
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Phase
- Single Phase
- Special Features
- Commercial Specification Grade
- Voltage Rating
- 125 V
- General Literature Asset 1 Display Text
- General Literature - Surge Protection Devices
- General Literature Asset 3 Display Text
- General Literature - Duplex Surge Receptacles
- Display Size
- Standard
- Style
- Isolated Ground
- Description - Invoice
- DUP SPD RCPT, IG, 15A 125V, 5-15R,WH
- Harmonization Code
- 8536308000
- MSDS Flag
- No
- Sub Class Code
- A44A420
- Current Rating
- 15 A
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 12.500 lb.
- Lowest Level UOM
- Each
ColorWhite
Width2.000 in
ApplicationIG Duplex with Light and Alarm
Frequency Rating60 Hz
OutletStraight Blade
Response Time5
TypeDuplex Receptacle
Voltage Rating Description125 V
General Literature Asset 2 Display TextGeneral Literature - Power Disruption Solutions
ConnectivityTerminal Screws
Nema Rating5-15R
Class CodeNormal and Common Mode
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberSP52TIGWA
Material - Mounting HardwareMounting Screws
Indicator(s) TypeLED and Audible Alarm
SeriesSpecification Grade
BOX SIZE4.000x11.200x4.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786139138
Case - Total Units50 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
