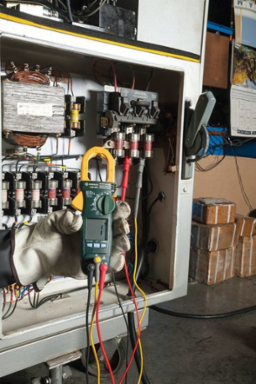

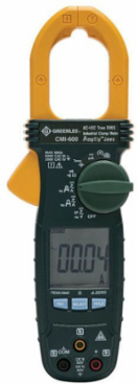

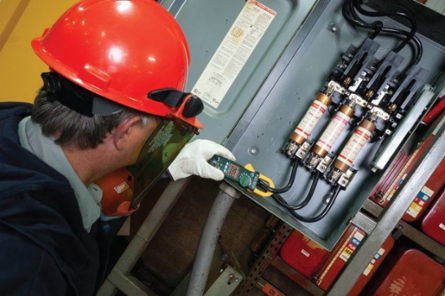

Greenlee CMI-600 AC/DC Clamp Meter, 600V Voltage & 600A Current, 1.18 Inch Jaw Opening
- MPN: CMI-600
- UPC: 783310021919
- PPN: GRN-CMI-600
- UNSPSC: 41113630
CAD
$580.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
AC/DC Clamp Meter, 600V Voltage & 600A Current, 1.18 Inch Jaw Opening
Features
- Measures AC+DC current and DC microamps
- AC and AC+DC voltage measurements with digital filter low pass for accurate readings on variable frequency drives
- Also allows linemen to measures DC voltage, resistance, capacitance, temperature and frequency
- Tests continuity and diodes
- Phase Sequence & Motor Rotation tests
- Peak-RMS measures motor in rush current
- Backlight & relative mode for added versatility
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Display
- LCD, 6000 Count
- Includes
- (2) 1.5V AAA batteries, test leads and clips, carrying case
- Measurement Category
- CAT III 600V, CAT IV 300V
- Resistance Measurement
- 600, 6k, 60k Ohms
- True Power
- AC+DC True RMS
Amperage Measurement60, 600 Amps AC+DC
Frequency RatingVoltage and AmpTip™ current - 50/60 Hz. High current - 50 to 400 Hz
Jaw Opening1.18'' (30 mm)
Replacement Part02714 test leads and clips, TC-10 carrying case
StandardCAT III, C/US UL Listed, CE
Voltage Measurement600 Volts AC+DC
