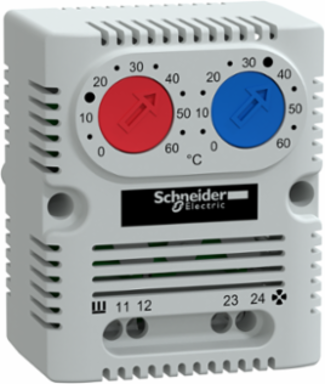

Schneider Electric NSYCCOTHD ClimaSys CC Double Thermostat 250V, 0-60°C, 1 NO/NC, IP20
- MPN: NSYCCOTHD
- PPN: SCH-NSYCCOTHD
CAD
$110.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ClimaSys CC Double thermostat. 250V AC. 68 x 56 x 44 mm. Sensor Bimetal with 1 NO/NC contact type. 1 heating function and 1 ventilation function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.
Documentation & Downloads
Specifications
Key Specifications
- Information Displayed
- temperature in °C
- Temperature Setting Range
- 0-60 °C
- Range
- ClimaSys
Product Or Component Typedouble thermostat
Product NameClimaSys CC
Complementary
- Maximum Switching Capacity
- 2 A 120...250 V AC inductive 0.6 || 10 A 250 V AC resistive || 15 A 120 V AC resistive || 30 W DC
- Input Voltage
- 250 V
- Hysteresis
- 7 K +/- 0.4K
- Contacts Type And Composition
- 1 NO/NC
- Mounting Mode
- clipped
- Width
- external 56 mm
- Height
- external 68 mm
- Service Life In Cycles
- 100000 cycles
- Net Weight
- 40 g
- Depth
- external 44 mm
- Contact Resistance
- 10 mOhm
Product CertificationsUL
Electrical Connection4 terminals 2.5 mm²
Flame Retardanceself-extinguishing UL94 (material V0)
Ambient Air Temperature For Operation-20-80 °C
Colourlight grey
Number Of Outputs1 heating function || 1 ventilation function
Sensor Typebimetal
MaterialPC
Ip Degree Of ProtectionIP20
Mounting LocationSpacial upright || on mounting plate || 35 mm DIN rail || cross rails
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2103012EN
- Eu Rohs Directive
- Compliant with Exemptions
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Contractual warranty
- Warranty
- 18 months
