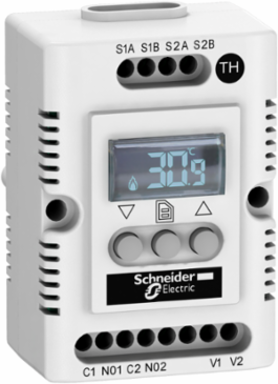

Schneider Electric NSYCCOTH30VID ClimaSys CC Electronic Thermostat 9-30V, -40-80 C, 4A 30V AC/DC
- MPN: NSYCCOTH30VID
- PPN: SCH-NSYCCOTH30VID
- UNSPSC: 39121321
CAD
$322.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This electronic thermostat from Schneider Electric is designed for efficient climate control within enclosures, offering reliable performance in a range of environments. With an operating voltage of 9-30V and a temperature range of -40 to 80 C, it is well-suited for various applications, ensuring the optimal functioning of the equipment it regulates. Capable of handling loads up to 4A at 30V AC/DC, this thermostat provides robust performance, making it a versatile solution for maintaining ideal temperature conditions in electrical boxes and other systems. Its durability and precision make it an essential component for effective enclosure climate management.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
Physical Attributes
| Color | Light gray |
|---|
Complementary Attributes
| Maximum Switching Capacity | 4 A 30 V AC/DC |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Information Displayed | temperature in °F, temperature in °C |
| Mounting Mode | by screws, clipped |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 0627 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Display Type | OLED screen |
| Energy Efficiency Optimized | False |
| Hysteresis | 2 K programmed value |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | electronical thermostat |
| Returnability | No |
| Sustainable Packaging | No |
| Height Nominal | external: 85 mm |
| Certificate Agency | UR |
| Customs Code | 9032100060 |
| Warranty In Months | 18 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Location | on mounting plate, cross rails, 35 mm DIN rail, Spacial upright |
| Temperature Setting Range | -40-80 °C, -40-80 °C |
| Local Publishable Date | 2026-04-15 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Electrical Connection | 10 terminals 2.5 mm² |
| Flame Retardance | self-extinguishing conforming to UL94 (material V0) |
| Material | PC |
| Product Name | ClimaSys CC |
| Range | ClimaSys |
| Sensor Type | optional NTC external sensor |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | external: 56 mm |
| Nbr. Of Units In Pkg. | 1 |
| Silicone Free | Yes |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2103012EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2103012EN |
| Ambient Air Temperature For Operation | -40-80 °C, -40-80 °C |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | electronical thermostat |
|---|
ETIM
| ETIM 8 | EC004587 |
|---|---|
| ETIM 10 | EC004587 |
| ETIM 9 | EC004587 |
|---|
Output Attributes
| Number Of Outputs | 2 ventilation/heating function |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Voltage | 9...30 V AC/DC |
|---|
