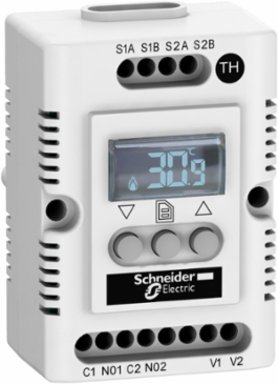

Schneider Electric NSYCCOTH120VID ClimaSys CC Electronic Thermostat -40 to 80 C, 90-140V AC, OLED Display
- MPN: NSYCCOTH120VID
- PPN: SCH-NSYCCOTH120VID
- UNSPSC: 39121321
CAD
$322.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric NSYCCOTH120VID ClimaSys CC Electronic Thermostat is expertly engineered to manage and monitor temperature within electrical enclosures, ensuring optimal performance of sensitive equipment. With a broad operating range from -40 to 80 C and compatibility with 90-140V AC power, this thermostat is suitable for a variety of industrial environments. The user-friendly OLED display provides clear, instant access to temperature readings and settings, making it easy to adjust for precise climate control. Designed for reliability and efficiency, this thermostat is an essential component in maintaining the integrity of your enclosure climate control systems.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, Spain, United States |
|---|
Physical Attributes
| Color | Light gray |
|---|
Complementary Attributes
| Maximum Switching Capacity | 4 A 120 V AC |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Information Displayed | temperature in °F, temperature in °C |
| Mounting Mode | by screws, clipped |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 0627 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Display Type | OLED screen |
| Energy Efficiency Optimized | False |
| Hysteresis | 2 K programmed value |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | electronical thermostat |
| Returnability | No |
| Sustainable Packaging | No |
| Height Nominal | external: 85 mm |
| Certificate Agency | UR |
| Customs Code | 9032100060 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Location | Spacial upright, 35 mm DIN rail, cross rails, on mounting plate |
| Temperature Setting Range | -40-80 °C, -40-80 °C |
| Local Publishable Date | 2026-04-15 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Electrical Connection | 10 terminals 2.5 mm² |
| Flame Retardance | self-extinguishing conforming to UL94 (material V0) |
| Material | PC |
| Product Name | ClimaSys CC |
| Range | ClimaSys |
| Sensor Type | optional NTC external sensor |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | external: 56 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Operation | -40-80 °C, -40-80 °C |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP2103012EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2103012EN |
General Attributes
| Product Or Component Type | electronical thermostat |
|---|
ETIM
| ETIM 8 | EC004587 |
|---|---|
| ETIM 10 | EC004587 |
| ETIM 9 | EC004587 |
|---|
Output Attributes
| Number Of Outputs | 2 ventilation/heating function |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Voltage | 90...140 V AC |
|---|
