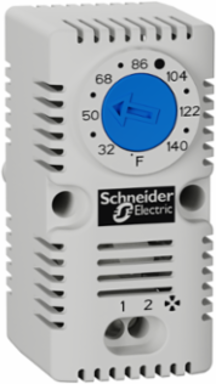

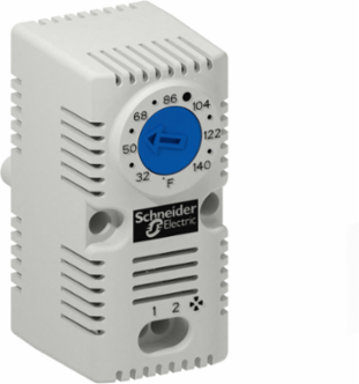

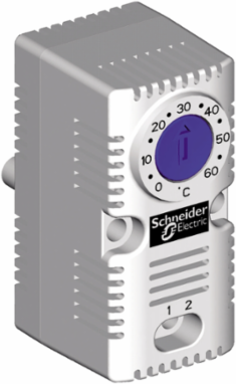

Schneider Electric NSYCCOTHOF ClimaSys CC Simple Thermostat 250V, 0-60 C, 40g, IP20
- MPN: NSYCCOTHOF
- PPN: SCH-NSYCCOTHOF
CAD
$95.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The ClimaSys CC Simple Thermostat from Schneider Electric is designed for efficient climate control in electrical enclosures, ensuring optimal temperature management for sensitive equipment. Operating at a voltage of 250V and with a temperature range of 0-60 C, this thermostat is equipped to handle various environmental conditions while maintaining reliable performance. Its compact design and IP20 rating make it suited for use in a variety of indoor settings where climate regulation is crucial. Ideal for safeguarding critical electrical components, this thermostat showcases Schneider Electric's commitment to quality and innovation in enclosure climate control solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States
Physical Attributes
- Color
- Light gray
Complementary Attributes
- Maximum Switching Capacity
- 2 A 120...250 V AC inductive 0.6, 10 A 250 V AC resistive15 A 120 V AC resistive30 W DC
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Hysteresis
- 7 K +/- 0.4K, 7 %
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 0627
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Contact Resistance
- 10 mOhm
- Electrical Connection
- 4 terminals 2.5 mm²
- Flame Retardance
- self-extinguishing conforming to UL94 (material V0)
- Material
- PC
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- simple thermostat
- Returnability
- Yes
- Service Life In Cycles
- 100000 cycles
- Temperature Setting Range
- 0-60 °C
- Pep Code
- ENVPEP2103012EN
- Width Nominal
- external: 33 mm
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
- Customs Code
- 9032100060
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting LocationSpacial upright, 35 mm DIN rail, on mounting plate, cross rails
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And CompositionNO
Energy Efficiency OptimizedFalse
Information Displayedtemperature in °F
Mounting Modeclipped
Product NameClimaSys CC
RangeClimaSys
Sensor Typebimetal
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominalexternal: 68 mm
Certificate AgencyUL
Package Weight(Lbs)60.000 g
Take-backNo
Other Technical GuideCPTG001_EN
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2103012EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-20-80 °C, -20-80 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Silicon FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2103012EN
General Attributes
- Product Or Component Type
- simple thermostat
ETIM
- ETIM 8
- EC004587
ETIM 9EC004587
Output Attributes
- Number Of Outputs
- 1 ventilation function
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 240 V
