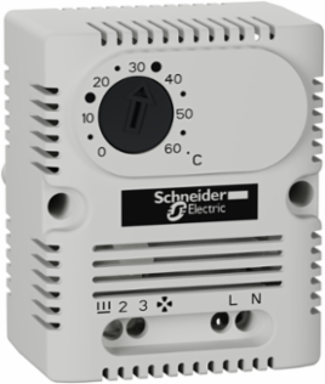

Schneider Electric NSYCCOTHI ClimaSys CC Thermostat 250V, 5-60 C, 1 NO/NC, IP20, 100g
- MPN: NSYCCOTHI
- PPN: SCH-NSYCCOTHI
CAD
$110.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The ClimaSys CC Thermostat from Schneider Electric is designed for effective climate control within electrical enclosures. Operating at a voltage of 250V, it offers a temperature range of 5 to 60 C, ensuring precise regulation and monitoring of internal conditions. With a single normally open/normally closed (1 NO/NC) configuration, this thermostat provides flexible settings suitable for various applications. Additionally, it features an IP20 rating, making it suitable for use in dry environments. This reliable, compact unit is essential for maintaining optimal performance and longevity of sensitive electronic equipment housed in enclosures.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Spain, France
Physical Attributes
- Color
- Light gray
Complementary Attributes
- Maximum Switching Capacity
- 4 A 250 V AC inductive 0.630 W DC, 10 A 250 V AC inductive
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Location
- cross rails, on mounting plate, 35 mm DIN rail, Spacial upright
- Local Publishable Date
- 2024-02-10
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- 1 NO/NC
- Flame Retardance
- self-extinguishing conforming to UL94 (material V0)
- Information Displayed
- temperature in °C
- Mounting Mode
- clipped
- Product Name
- ClimaSys CC
- Range
- ClimaSys
- Sensor Type
- bimetal
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- external: 68 mm
- Certificate Agency
- UL
- Package Weight(Lbs)
- 84.000 g
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date0627
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Contact Resistance10 mOhm
Electrical Connection4 terminals 2.5 mm²
Hysteresis7 K +/- 0.4K
MaterialPC
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typethermostat
ReturnabilityNo
Service Life In Cycles100000 cycles
Temperature Setting Range5-60 °C
Pep CodeENVPEP2103012EN
Width Nominalexternal: 56 mm
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Customs Code9032100060
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2103012EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-20-80 °C, -20-80 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Silicon FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2103012EN
General Attributes
- Product Or Component Type
- thermostat
ETIM
- ETIM 8
- EC004587
ETIM 9EC004587
Output Attributes
- Number Of Outputs
- 1 heating function, 1 ventilation function
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 240 V
