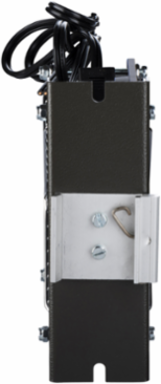

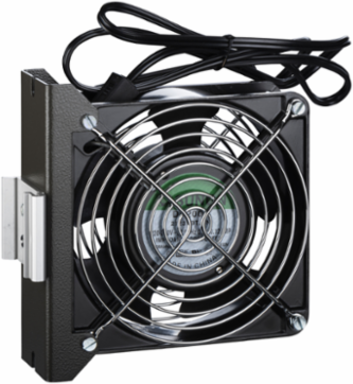

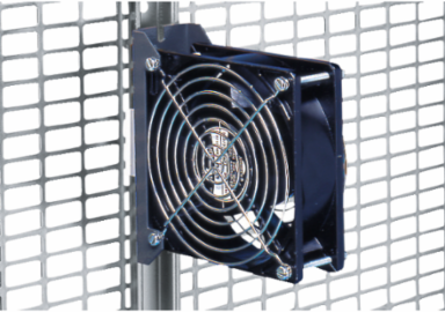

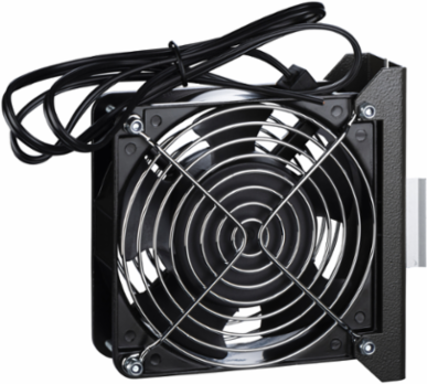

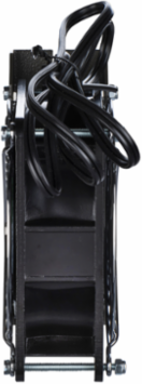

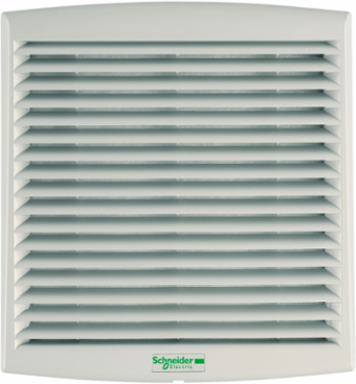

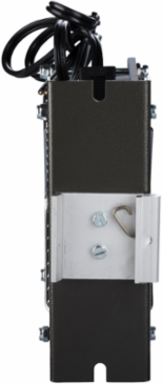

Schneider Electric NSYCVF170M230 Climasys Fan 170 m3/h, 230V, 17W, 0.82 kg
- MPN: NSYCVF170M230
- PPN: SCH-NSYCVF170M230
- UNSPSC: 39121324
CAD
$102.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered to enhance air circulation within electrical enclosures, the Climasys fan from Schneider Electric provides an effective solution for managing temperature and humidity levels. With a robust airflow rating of 170 m3/h and operating at 230V, this fan ensures optimal environmental conditions for sensitive electrical components. Its energy-efficient design utilizes only 17W of power, striking a balance between performance and sustainability. Weighing in at 0.82 kg, this is a reliable choice for ensuring longevity and performance in critical enclosure climate control applications.
Features
- Efficient and reliable cooling with a noise level of 41-41 dB.
- Made of durable steel for long-lasting performance.
- Comes with two protective grilles and a fixing collar for added safety.
- Power range of 17 W and an input voltage of 230 V 50/60 Hz for efficient operation.
- Has a free flow rate of 170 m3/h at 50 Hz for effective cooling.
- Easy to install and use for convenient operation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Weight | 846 g |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 1 axial motor, 2 protective grille on the front and rear surfaces, 1 fixing collar |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 1 kg CO2 eq., 1.2618087209983788 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 5 kg CO2 eq., 5.494061789800279 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Material | protective grille steel |
| Power Range | 17 W |
| Product Name | ClimaSys CV |
| Range | ClimaSys |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 1 032 kg CO2 eq. |
| Database Version | 2024-01 |
| Height Nominal | external: 119 mm |
| Nbr. Of Units In Pkg. | 1 |
| Silicone Free | Yes |
| Functional Unit Description | "Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. " |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 2531.64 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 1.6766142486020983, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.09401921980472148, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 1 023 kg CO2 eq., 1023.2842503464 |
| Local Publishable Date | 2025-09-16 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1107017EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Noise Level | 41-41 dB |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | fan |
| Returnability | No |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | external: 119 mm |
| Customs Code | 8414596590 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 17 |
| Recyclability Potential In % | 64 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Silicon Free | Yes |
| Air Flow | free flow rate: 170 m3/h at 50 Hz |
| Environmental Disclosure | ENVPEP110717EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0008-ed3-EN-2023 10 19 |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Carbon Footprint | 1031.8107543256056 |
| Circularity Profile | ENVEOLI1107017EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP110717EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | fan |
|---|
ETIM
| ETIM 8 | EC000320 |
|---|---|
| ETIM 10 | EC000320 |
| ETIM 9 | EC000320 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Voltage | 230 V 50/60 Hz |
|---|
