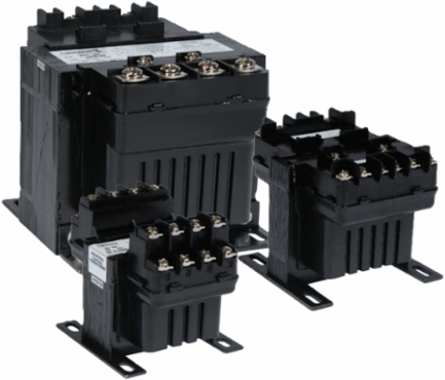

Hammond Power Solutions PH150PG Imperator Encapsulated Control Transformer 150VA 120x240V→12x24V 50/60Hz
- MPN: PH150PG
- UPC: 803423078157
- PPN: HPS-PH150PG
CAD
$177.88
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HPS Imperator encapsulated machine-tool/industrial control transformer. Rated 150 VA. Primary voltage 120x240, 115x230, 110x220 V; secondary voltage 12x24, 11.5x23, 11x22 V; 50/60 Hz. Output current 12.5/6.25 A. Approximate shipping weight 5.7 lb.
Features
- Encapsulated machine-tool industrial control transformer
- UL Class 5085 rated; suitable for industrial control panels
Documentation & Downloads
Specifications
Physical
| Mounting Centers | 3.38 x 2.75 in |
|---|---|
| Height with Finger Guard | 4.5 in |
| Width | 4 in (101.6 mm) |
| Height | 3.81 in (96.8 mm) |
| Mounting Slot | 0.22 x 0.75 in |
|---|---|
| Depth with Finger Guard | 6.44 in |
| Depth | 4.94 in (125.5 mm) |
| Shipping Weight | 5.7 lb (2.6 kg) |
Electrical
| VA Rating | 150 |
|---|---|
| Secondary Voltage | 12x24, 11.5x23, 11x22 |
| Output Current | 12.5/6.25 A |
| Primary Voltage | 120x240, 115x230, 110x220 |
|---|---|
| Frequency | 50/60 Hz |
Construction
| Mounting Figure | B |
|---|
| Fuse Kit | PFK2 |
|---|
