Hammond Power Solutions PH50AJ Imperator 50VA V AJ (PH50AJ)
- MPN: PH50AJ
- UPC: 803423019709
- PPN: HPS-PH50AJ
CAD
$102.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

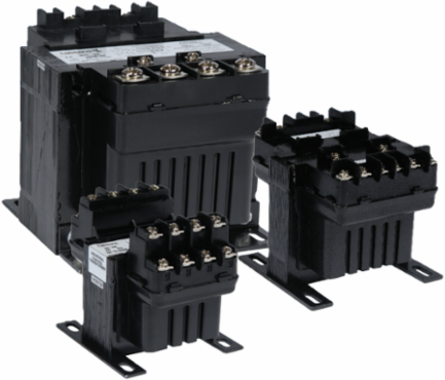

HPS Imperator encapsulated machine-tool/industrial control transformer. Rated 50 VA.
Features
- Encapsulated machine-tool industrial control transformer
- UL Class 5085 rated; suitable for industrial control panels
Documentation & Downloads
Specifications
Additional
- VA Rating
- 50 VA
- Voltage Code
- AJ
- Secondary Voltage
- 120/240V
- Voltage Class
- 600V
- Overall Dimensions Height
- 3.19 in
- Mounting Centers D
- 2.50 in
- Mounting Slot
- 0.22 x 0.44 in
- Depth with Finger Guard
- 5.25 in
- Mounting Figure
- A
- Compliance
- UL Listed, CSA Certified, CE Mark, RoHS Compliant
Frequency60 Hz
Primary Voltage600V
Output Amps0.42/0.21 A
Width3.00 in (72.20 mm)
Overall Dimensions Depth3.81 in
Mounting Centers E2.25 in
Height with Finger Guard4.00 in
Terminal ConnectionCombination slot/Phillips #6 screw with SEMS washer (18 to 14 AWG)
Insulation Class130 C
