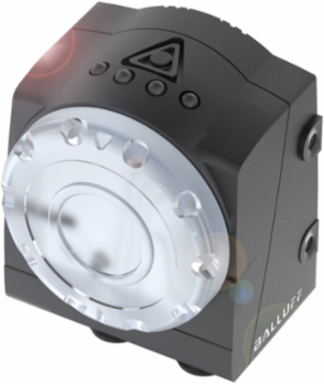

Balluff BVS ID-3-007-E Code Reader with Ethernet Interface, 16 mm Focal Length, IP54 Rating
- MPN: BVS ID-3-007-E
- PPN: BAL-BVS000Y
CAD
$2914.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Code Reader with Ethernet Interface, 16 mm Focal Length, IP54 Rating
Documentation & Downloads
Specifications
Additional
- Interface
- Ethernet 10/100 Base T; RS232 (9.6...115.2 kBaud)
- Focal Length
- 16.0 mm
- Field of View
- 43 x 32 mm ... 240 x 180 mm
- Switching output
- 3x PNP Normally open (NO)
- Connection 1
- M12x1-Male, 8-pin, A-coded
- Ingress Protection
- IP54
- 1D codes
- Interleaved 2-of-5, Code 39, Code 128, Pharmacode, Codabar, EAN 8, EAN 13, UPC-E, UPC-A
- Stacked codes
- PDF417
- Approval/Conformity
- CE; cULus; WEEE
Operating voltage22...26 VDC
Range150...1000 mm
Image resolution0.3 MP (640 x 480 pixels)
Ambient temperature-10...55 B0C
Connection 2M12x1-Male, 4-pin, D-coded
Housing materialAluminum, Die casting, Painted; ABS
2D codesData Matrix ECC 200; QR code; Mini QR
Sensor typeCMOS image sensor black-white
Country of OriginItaly
