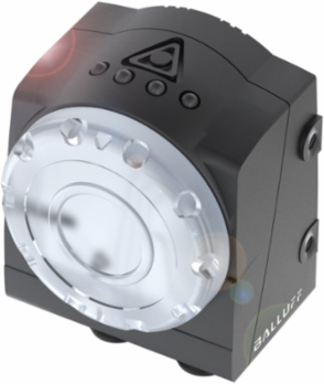

Balluff BVS ID-3-103-E Code Reader, 50-1000 mm Range, IP54, CMOS Sensor, 0.3 MP Resolution
- MPN: BVS ID-3-103-E
- PPN: BAL-BVS001A
CAD
$3044.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Code Reader, 50-1000 mm Range, IP54, CMOS Sensor, 0.3 MP Resolution
Documentation & Downloads
Specifications
Additional
- Range
- 50...1000 mm
- IP Rating
- IP54
- Field of View
- 16 x 12 mm ... 320 x 240 mm
- Dimension
- 51.5 x 70 x 40 mm
- Connection 2
- M12x1-Male, 4-pin, D-coded
- Sensor Type
- CMOS image sensor black-white
- Housing Material
- Aluminum die casting painted; ABS
- Codes Supported
- 1D: Interleaved 2-of-5, Code 39, Code 128, Pharmacode, Codabar, EAN 8, EAN 13, UPC-E, UPC-A; 2D: Data Matrix ECC 200, QR code, Mini QR; Stacked: PDF417
- Approval/Conformity
- cULus; CE; WEEE
Operating Voltage22...26 VDC
Switching Output3x PNP Normally open (NO)
Focal Length12.0 mm
Connection 1M12x1-Male, 8-pin, A-coded
InterfaceEthernet 10/100 Base T; RS232 (9.6...115.2 kBaud)
Image Resolution0.3 MP (640 x 480 pixels)
Light TypeInfrared
Ambient Temperature-10...55 °C
Country of OriginItaly
