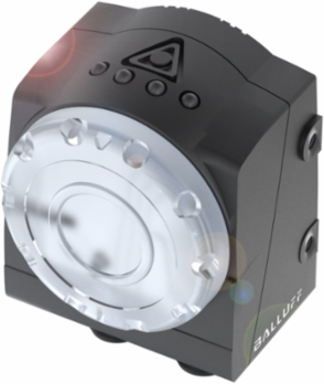

Balluff BVS ID-3-101-E Code Reader with 1D/2D Code Support, 51.5 x 70 x 40 mm, IP54, Infrared
- MPN: BVS ID-3-101-E
- PPN: BAL-BVS0019
CAD
$3044.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Code Reader with 1D/2D Code Support, 51.5 x 70 x 40 mm, IP54, Infrared
Documentation & Downloads
Specifications
Additional
- 1D codes
- Interleaved 2-of-5, Code 39, Code 128, Pharmacode, Codabar, EAN 8, EAN 13, UPC-E, UPC-A
- Stacked codes
- PDF417
- Range
- 50...1000 mm
- Image resolution
- 0.3 MP (640 x 480 pixels)
- Dimensions
- 51.5 x 70 x 40 mm
- Light source
- Infrared
- Housing material
- Aluminum die casting painted, ABS
- Connection 1
- M12x1-Male, 8-pin, A-coded
- Interface
- Ethernet 10/100 Base T; RS232 (9.6...115.2 kBaud)
- Approval/Conformity
- cULus, CE, WEEE
2D codesData Matrix ECC 200, QR code, Mini QR
Operating voltage22...26 VDC
Field of view24 x 18 mm ... 480 x 360 mm
Focal length8.0 mm
IP ratingIP54
Sensor typeCMOS image sensor black-white
Switching output3x PNP Normally open (NO)
Connection 2M12x1-Male, 4-pin, D-coded
Ambient temperature-10...55 °C
Country of OriginItaly
