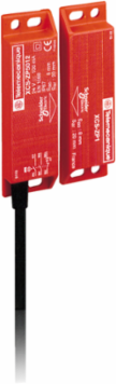

Telemecanique Sensors XCSDMP7002 Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMP, 2 NC + 1 NO, 1 NC staggered, 2 m

MPN: XCSDMP7002
PPN: TES-XCSDMP7002
UNSPSC: 39122245

$220.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This XCSDMP Coded Magnetic Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. It has 1 normally open and 2 normally closed staggered contacts in presence of magnet. It has a rectangular design with a 2 meter with PVC cable connection, allowing for flexible installation. Its B10D reliability data is 50 000 000. Its IP66 / IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Telemecanique Safety switches XCS
Cable Length	2 m
Component Name	XCSDMP
Material	plastic
Contacts Type And Composition	2 NC + 1 NO
Electrical Connection	pre-cabled
Approach Directions	3 directions
Number Of Poles	3

[Ue] Rated Operational Voltage	24 V DC
Product Or Component Type	coded magnetic switch
Design	rectangular, standard
Size	88 x 25 x 13 mm
Contact Operation	1 NC staggered
Cable Composition	6 x 0.25 mm²
[Ui] Rated Insulation Voltage	100 V DC

Complementary

Maximum [Ie] Rated Operational Current	100 mA
Switching Frequency	150 Hz
Switching Capacity In Ma	0.1...100 mA
Contacts Material	rhodium
Resistance Across Terminals	10 Ohm
[Uimp] Rated Impulse Withstand Voltage	2.5 kV EN/IEC 60947-5-1
[Sa] Assured Operating Distance	8 mm
Breaking Capacity	10 VA
Enclosure Material	thermoplastic PBT
Depth	13 mm
Safety Level	can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Height	88 mm
Short-Circuit Protection	500 mA external cartridge fuse gG (gl)
[Sar] Assured Tripping Distance	20 mm
Insulation Resistance	1000 MOhm
Net Weight	0.18 kg
Maximum Switching Voltage	100 V DC
Cable Material	PVC
Safety Reliability Data	B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
Width	25 mm
Electrical Durability	1200000 cycles

Environment

Product Certifications	UL \|\| CSA
Standards	UL 508 \|\| EN/IEC 60204-1 \|\| EN/ISO 12100 \|\| EN/IEC 60947-5-1 \|\| CSA C22.2 No 14 \|\| ISO 14119
Vibration Resistance	10 gn 10-150 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-85 °C
Maximum Sensitivity To Magnetic Fields	0.3 mT

Ambient Air Temperature For Operation	-25-85 °C
Shock Resistance	30 gn 11 ms IEC 60068-2-27
Ip Degree Of Protection	IP66 conforming to IEC 60529 \|\| IP67 conforming to IEC 60529
Electrical Shock Protection Class	class II EN/IEC 61140
Protective Treatment	TH

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
