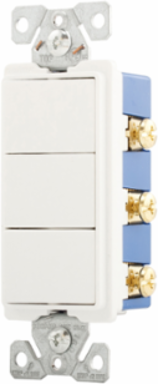

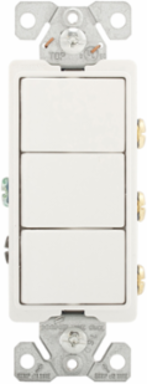

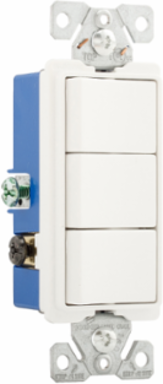

Cooper Wiring Devices 7729W-BOX Combination Switch, Commercial Grade, Decorator, (3) Single-Pole, 15A, 120/277 V, White
- MPN: 7729W-BOX
- UPC: 032664750410
- PPN: COW-7729W-BOX
CAD
$24.21
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Eaton commercial grade combination switch, auto-grnd, Decorator, #14 - #12 AWG, 15A, resi, comm, 120/277V, bk and sd wiring, Rocker, Maint closure, Screw, Brass, wht, -20-60°C, (3) 1-pole, Triplex, thermoplas, polycrb, PVC
Documentation & Downloads
Specifications
Key Specifications
| Amperage Rating | 15A |
|---|---|
| Switch Type | (3) Single-pole |
| Application | Residential, commercial |
| Actuator | Rocker |
| Torque Rating | 12-14 lbf-inch |
| Width | 1.08 in |
| Allowable Wire Size | #14-12 AWG |
| Connector Type | Screw |
| Configuration | (3) decorator |
| Contact Type | Brass |
| Wiring Method | Back and side |
| Type | Decorator |
| Voltage Rating | 120/277 V |
|---|---|
| Number of Poles | Single-pole |
| Closure Type | Maintained |
| Operating Temperature | -20 to 60 °C |
| Height | 4.19 in |
| Length | 1.3 in |
| Mounting Method | Flush |
| Style Type | Triplex |
| Material | Polycarbonate Thermoplastic |
| Color | White |
| Special Features | Auto-ground |
| Device Grade | Commercial |
