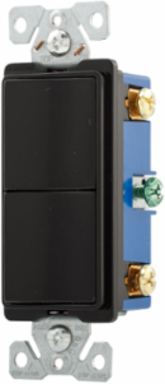

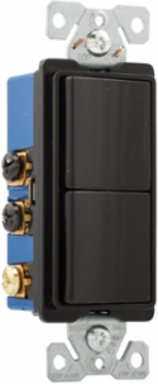

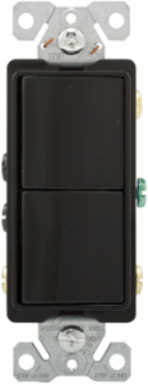

Cooper Wiring Devices 7732BK-BOX Combination Switch, Commercial Grade, Decorator, Single-Pole/Three-Way, 15A, 120/277 V, Black
- MPN: 7732BK-BOX
- UPC: 032664670756
- PPN: COW-7732BK-BOX
CAD
$21.11
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton commercial grade combination switch, auto-grnd, Decorator, #14 - #12 AWG, 15A, resi, comm, 120/277V, bk and sd wiring, Rocker, Maint closure, Screw, Brass, blk, -20-60°C, (1) 1-pole, (1) 3-way, dplx, thermoplas, polycrb, PVC
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 15A
- Switch Type
- Single-pole, three-way
- Number Of Ways
- Three-way
- Closure Type
- Maintained
- Operating Temperature
- -20 to 60 °C
- Height
- 4.25 in
- Length
- 1.75 in
- Mounting Method
- Flush
- Style Type
- Duplex
- Material
- Thermoplastic Polycarbonate
- Color
- Black
- Special Features
- Auto-ground
- Device Grade
- Commercial
Voltage Rating120/277 V
Number of PolesSingle-pole
ApplicationResidential, commercial
ActuatorRocker
Torque Rating12-14 lbf-inch
Width1.85 in
Allowable Wire Size#14-12 AWG
Connector TypeScrew
Configuration(2) decorator
Contact TypeBrass
Wiring MethodBack and side
TypeDecorator
