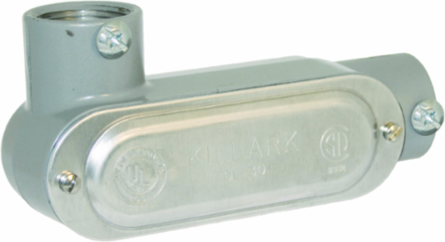

Killark COLL-2CG Combo LL Aluminum Conduit Body with Cover & Gasket 3/4 Inch, Aluminum, 6 x 3 x 2 Inch
Killark COLL-2CG Combo LL Aluminum Conduit Body with Cover & Gasket 3/4 Inch, Aluminum, 6 x 3 x 2 Inch
- MPN: COLL-2CG
- UPC: 783936067841
- PPN: HBL-COLL-2CG
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$94.65/ EA
Description
Combo LL Aluminum Conduit Body, Cover,Gasket 3/4"
Features
- Combination bodies have threaded and set screw hubs
- Prepackaged with body, cover, and gasket
- For use with IMC and EMT conduit
- Covers furnished with stainless steel screws
- NPSM threads
- Type 3 rated with Rigid / IMC conduit
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 7 cu. in.
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 3.000 in
- Color
- Gray
- Height
- 2 in
- Length
- 6 in
- Type
- Conduit Body With Cover & Gasket
- Cover Type
- Stamped
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- COMBO LL CONDUIT BODY AL, CVR,GASK 3/4"
- Harmonization Code
- 7609000000
- Lead Time
- 49 wk
- Order Multiple
- 10 EA
- Sub Class Code
- D30D231
- Hub Pattern
- LL
- Series
- CO Series
- BOX SIZE
- 8.750x15.250x6.250 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936067841
- Master Pack Description
- Each
Dimensions6 in x 3 in x 2 in
ApplicationTo provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. Combination bodies for use with EMT or rigid/IMC conduit.
FinishPowder Epoxy Paint
Hub Size3/4"
Special FeaturesCombination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 7 cu. in.
Width3 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.47
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
