Square D LV434001 Enerlin'X IFE Ethernet Interface Module, 10/100 Mbps, 72mm x 105mm x 71mm
- MPN: LV434001
- PPN: SCH-LV434001
CAD
$3697.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

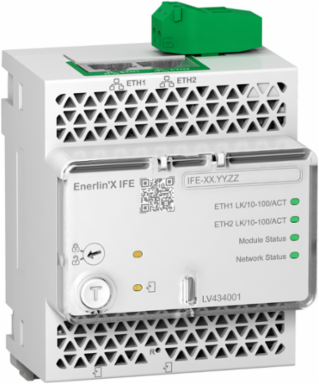

This IFE is an Ethernet interface module, and it is part of EnerlinX communication system. It provides an Ethernet access to a single Masterpact, Compact or PowerPact circuit breaker. The data flow is 10/100 Mbps for a simple daisy chain connection. It is equipped on the top with one 24VDC screw clamp terminal block and 2xRJ45 sockets for Ethernet network connection. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFE interface is a DIN rail mounting device and its dimensions are 72mm x 105mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFE interface is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The IFE interface firmware can be updated using EcoStruxure Power Commission software.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Argentina, Brazil, China, Spain, Indonesia, Mexico, Singapore, United States
Depth71 mm
Communications & Management Attributes
- Communication Network Type
- Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP 10/100 Mbit/s 2-port RJ45, Universal Logic Plug 2-port RJ45
Complementary Attributes
- Maximum Supply Current
- 3 A
Important Information Attributes
- Persona Type Ids
- PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Flame Retardance
- V0 conforming to UL 94, V0 conforming to IEC 60947-1, V0 conforming to IEC 60695-2-11
- Certificate Agency
- GOST, cULus, FCC, CE
- Carbon Footprint Of The Distribution Phase [A4]
- 0.029305013, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.083288309, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 103 kg CO2 eq., 103.4
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- DPIBS
- Use Carbon Footprint
- 103.4
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2305024EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1920
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- by software
- Device Short Name
- IFE
- Mounting Mode
- by clips
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- Enerlin'X
- Shock Resistance
- 1000 m/s²
- Sustainable Packaging
- No
- Vibration Frequency
- 5-8.4 Hz
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- This is an Ethernet gateway module with dual Ethernet ports with 10/100Mbps bit rate and able to handle 8 Modbus client connections to monitor, control and configure LV range of breaker systems during 10 years
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime, In Kwh
- 252.288
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 105 mm
- [Us] Rated Supply Voltage
- 24 V DC - 20...10 %
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 188.0 g
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 103.4
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 1113.6
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 153.75
- Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
- 1.0072
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 505.88
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 505.88
Persona Type NamesPanel Builder, System Integrator
Market SegmentationCommercial, Industrial
Range Of ProductComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200
Accessory / Separate Part Categoryspare part Compact NS630b...1600, spare part Compact NS1600b...3200
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.306657308
Carbon Footprint Of The Manufacturing Phase [A1 To A3]12 kg CO2 eq., 12.04027228
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=ESXP1G003EN&p_File_name=ESXP1G003EN_web.pdf, ESXP1G003EN
Local Publishable Date2025-07-10
Stocking FlagN
Device TypeRelay, Control & Measurement - gateway
TraceabilityYes
Average Life Duration15 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier3
Function OptionStandard
Compatibility CodeIFE
Current Consumption120 mA
Energy Efficiency OptimizedFalse
Mounting Support35 mm DIN rail
Product Or Component Typeinterface module
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint116 kg CO2 eq.
Web Serverembedded HTTP server
Pep CodeENVPEP2305024EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential, In %1
Width Nominal72 mm
Connections - TerminalsRJ45 connector
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]103.27
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]2634.4
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]2.0574
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]14.878
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]3140.3
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2634.4
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 115.8595229
- Environmental Disclosure
- ENVPEP2305024EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-85 %
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-20-70 °C, -20-70 °C
Ip Degree Of Protectionconnectors IP2X, other parts IP3x, front panel IP4X
Halogene PerformanceHalogen free plastic parts product
Mercury FreeYes
Circularity ProfileENVEOLI2305024EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2305024EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Range Of Product
- ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200
Product Or Component Typeinterface module
ETIM
- ETIM 8
- EC001604
ETIM 9EC001604
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
