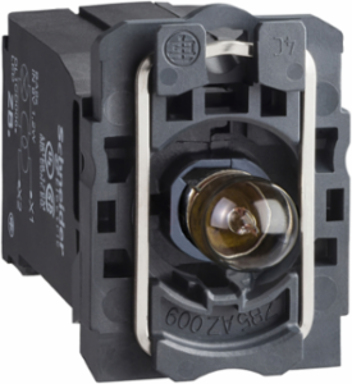

Schneider Electric ZB5AV5 Harmony XB5 Light Block Assembly with 400V AC, BA9s Incandescent Bulb

MPN: ZB5AV5
PPN: SCH-ZB5AV5
UNSPSC: 39122216

$104.55

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Mexico

Weight	98 g

Physical Attributes

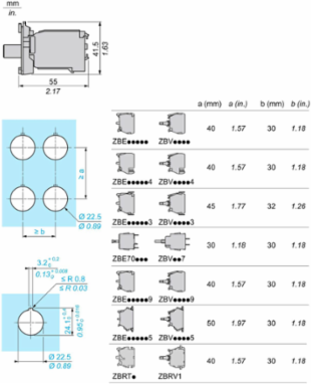

Cad Overall Depth	55 mm
Cad Overall Width	30 mm

Cad Overall Height	42 mm

Complementary Attributes

Us Rated Supply Voltage	400 V, 400 V AC 50/60 Hz
Uimp Rated Impulse Withstand Voltage	6 kV IEC 60947-1

Ui Rated Insulation Voltage	600 V 3)IEC 60947-1

Important Information Attributes

Customizable	0, no
Light Source	incandescent, incandescent
Certificate Agency	CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The Distribution Phase A4	0.0128151333, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0380811667, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	32 kg CO2 eq., 32.0798122066
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Average Percentage Of Recycled Plastic Content	16 %
Compatibility Code	ZB5
Electrical Shock Protection Class	class II conforming to IEC 60536
Light Block Supply	via integral transformer 1.2 VA 6 V
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TH
Returnability	Yes
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Version	v5.9.4
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Connections Terminals	screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	22

Electrical Composition Code	P4, M9
Shape Of Screw Head	cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Terminals Description Iso N°1	(X1-X2)PL, (X1-X2)PL
Carbon Footprint Of The End Of Life Phase C1 To C4	0.2 kg CO2 eq., 0.1700109444
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.7 kg CO2 eq., 0.74774
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Product Kit Identifier	N
Bulb Base	BA 9s
Device Short Name	ZB5
Fixing Collar Material	plastic
Mounting Of Block	front mounting
Product Or Component Type	complete body/light block assembly
Range Of Product	Harmony XB5
Sale Per Indivisible Quantity	1
Signalling Type	steady
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	33 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Supply Voltage 20 Supply Voltage	400 V
Data Source	extrapolated product
Customs Code	8531809051
Functional Unit Description	Pilot light uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton&nbsp;power consumption is 0.432W with 71% active mode for 10 years, and it product&nbsp;complies with IEC 60947-1 standards..
Functional Unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	63.072

Environment Attributes Main

Ambient Air Temperature For Operation	-40-55 °C, -40-55 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	33.048459451
Environmental Disclosure	ENVPEP2308027_V1-EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2308027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2308027_V1-EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
