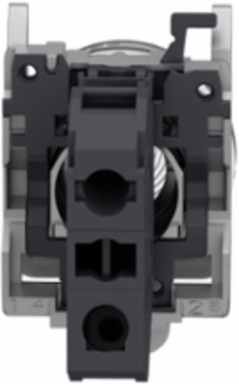

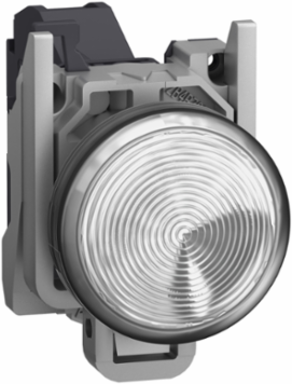

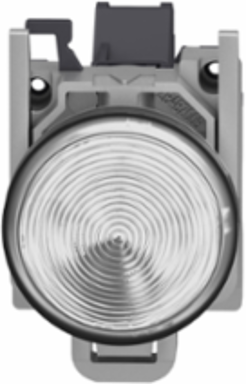

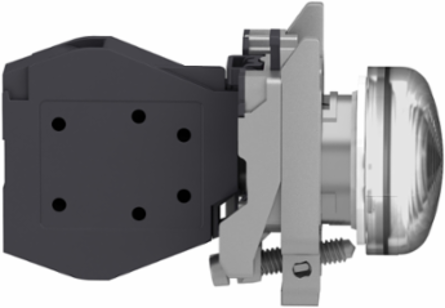

Schneider Electric XB4BVBM1GEX Harmony XB4 ATEX D Complete Pilot Light, 22mm, IP65, 24...254V AC/DC
- MPN: XB4BVBM1GEX
- PPN: SCH-XB4BVBM1GEX
CAD
$136.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This complete pilot light has a circular head shape and comes with integral blue LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This complete pilot light with plain lens provides clear visual feedback on the status of machines. This pilot light has a 24V to 254V AC/DC rating. It weighs 83g. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France

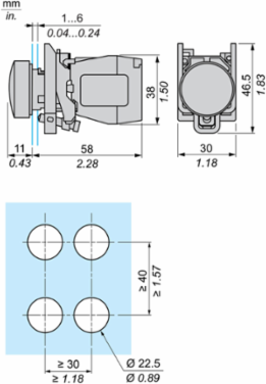

Depth69 mm
Physical Attributes
- Embedding Depth
- 58 mm
Light Source Colorwhite
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fixing Center
- >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm>= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0135995146, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0192652427, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 19 kg CO2 eq., 19.3595950704
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308026EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 36 %
- Compatibility Code
- XB4
- Dust Zone
- zone 21 - 22
- Gas Zone
- zone 1 - 2
- Mounting Diameter
- 22 mm
- Overvoltage Category
- I conforming to IEC 60536
- Product Or Component Type
- complete pilot light
- Protective Treatment
- TH
- Returnability
- Yes
- Service Life
- 100000 h
- Signalling Type
- steady
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 20 kg CO2 eq.
- Light Source Color
- white
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 41.61
- Recyclability Potential In %
- 85
- Width Nominal
- 46.2 mm
- [Us] Rated Supply Voltage
- 24...254 V AC/DC
- Connections - Terminals
- screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
- Package Weight(Lbs)
- 105.000 g
- Take-back
- No
- Customs Code
- 8531809051
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
MarkingII 2 GD, Ex eb mb IIC Gb, Ex tb IIIC Db
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.1242194175
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.7804417476
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content17 %
Bezel Materialchromium plated metal
Device Short NameXB4
Fixing Collar Materialzamak
Light Sourceintegral LED
Operator Additional Informationwith plain lens
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB4
Sale Per Indivisible Quantity1
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Tightening Torque0.8-1.2 N.m IEC 60947-1
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2308026EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal30 mm
Certificate AgencyINERIS 04ATEX9003U
Cap/Operator Or Lens Colourwhite
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-75 °C, -20-75 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 20.2971209928
- Environmental Disclosure
- ENVPEP2308026EN
- Ip Degree Of Protection
- IP65 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2308026EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level17 %
Mercury FreeYes
Circularity ProfileENVEOLI2308026EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- complete pilot light
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000272
ETIM 9EC000272
