Schneider Electric XB7EV03GP Harmony XB7 Green Pilot Light, 22 mm, LED, 110-120V AC, IP65

MPN: XB7EV03GP
PPN: SCH-XB7EV03GP

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$73.12

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

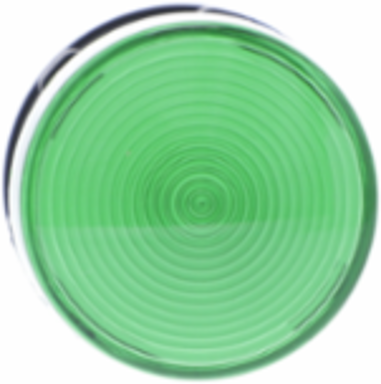

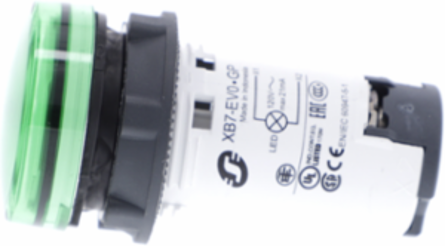

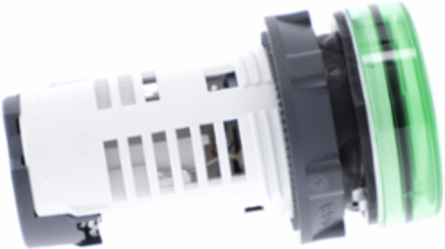

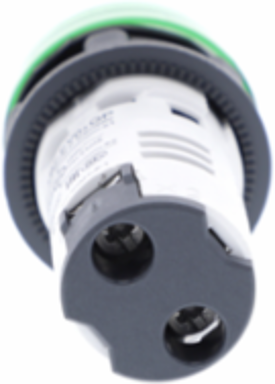

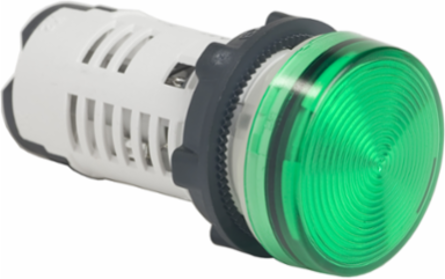

This Harmony XB7, plain lens monolithic green pilot light is supplied with 120V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Features

The Schneider Electric XB7EV03GP is a green pilot light from the Harmony XB7 series. Unlike the modular XB4 or XB5 lines, the XB7 is a monolithic product, meaning the head, body, and light source are integrated into a single unit. This design is highly cost-effective and simplifies ordering and inventory for Canadian OEMs and panel builders who need a reliable, "no-fuss" signaling solution.
Equipped with an integral LED, the XB7EV03GP offers a massive service life of approximately 70,000 hours at rated voltage. This far outlasts traditional incandescent bulbs and significantly reduces maintenance costs in Canadian industrial facilities. The LED provides a steady, bright green light that is easily visible even in well-lit factory environments.
This model is designed for a 110...120V AC supply (50/60 Hz), which is the standard control voltage for the majority of industrial machinery in Canada. It operates with a low current consumption of only 18 to 21 mA, making it an energy-efficient choice for large control consoles with dozens of indicators.
The unit is designed for a standard 22mm (22.5mm) panel cutout. This ensures universal compatibility with existing control stations, pendant boxes, and electrical cabinets. The compact depth of only 54 mm makes it ideal for shallow enclosures where back-panel space is limited.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia, Singapore, United States

Depth	54 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Fixing Center	>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
Certificate Agency	UL 508, IEC 60947-5-1, IEC 60947-1, JIS C8201-5-1, CSA C22.2 No 14, JIS C8201-1
Terminals Description Iso N°1	(X1-X2)PL, (X1-X2)PL
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.0511176527
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.4 kg CO2 eq., 0.3786302618
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	XB7
Device Short Name	XB7
Fixing Mode	fixing nut beneath head 2-2.4 N.m
Mounting Diameter	22 mm
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Returnability	Yes
Service Life	70000 h at rated voltage and 25 °C
Shock Resistance	50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Version	v5.9.4
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	102 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	XB7 monolithic green pilot light uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel.
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; ID
Height Nominal	29 mm
[Ui] Rated Insulation Voltage	250 V 3)IEC 60947-1
Cap/Operator Or Lens Colour	green
Nbr. Of Units In Pkg.	1
Take-back	No
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	250.3375
Customs Code	8531809051

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Shape Of Screw Head	cross JIS No 1, cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
[Us] Rated Supply Voltage	120 V, 120 V AC 50/60 Hz
Carbon Footprint Of The Distribution Phase [A4]	0.0027460687, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0000729624, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	101 kg CO2 eq., 101.224375
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2312030EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Bulb Base	integral LED
Current Consumption	18...21 mA
Electromagnetic Compatibility	disturbing field emission class B conforming to IEC 55011
Light Source	LED
Overvoltage Category	class II conforming to IEC 60536
Product Or Component Type	pilot light
Range Of Product	Harmony XB7
Sale Per Indivisible Quantity	10
Shape Of Signaling Unit Head	round
Signalling Type	steady
Supply Voltage Limits	100-132 V AC
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep Code	ENVPEP2312030EN
Pep Verification Date	2023-12-07
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Reference Lifetime In Y	10
Recyclability Potential In %	15
Width Nominal	29 mm
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Package Weight(Lbs)	20.000 g
Warranty (In Months)	18
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	250.3375

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Nema Degree Of Protection	UL type 4/12NEMA 4 UL 50 E, NEMA 12 UL 50 E
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2312030EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2312030EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	101.6569419455
Environmental Disclosure	ENVPEP2312030EN
Ip Degree Of Protection	IP20 IEC 60529 rear face)IP65 IEC 60529 front face)
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-12-07
Psr Version	PSR-0005-ed2-2016 03 29
