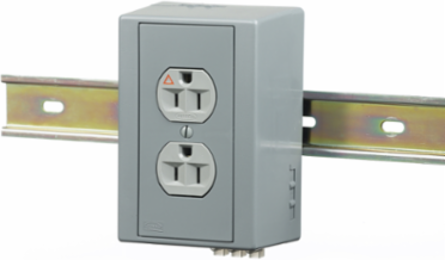

Hubbell Wiring Device-Kellems DRUBIG15 DIN Rail Box 15A 125V 2-Pole 3-Wire Gray 5.62 x 3.31 x 2.54 Inch
- MPN: DRUBIG15
- UPC: 783585108100
- PPN: HBL-DRUBIG15
- UNSPSC: 39121303
CAD
$155.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Complete Unit- IG, DIN Rail Box, 15A, IG, Gray.
Features
- It provides utility power to any control cabinet
- Optional auxiliary contacts for feed through capability
- Pre-wired "kits" are available for end-user customization
- 15A 125V, 2-Pole 3-Wire Grounding
Documentation & Downloads
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | DRUBIG15 AutoCAD Drawing |
|---|---|
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Current / Amperage Rating | 15 A |
| Height | 2.54 in |
| Industry Standard(s) | UL Listed |
| Cable Entry | Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| NEMA Rating | 5-15R |
| Number of Wires | 3-Wire |
| Special Features | 15A 125V, 2-Pole 3-Wire Grounding |
| Type | Box and Device |
| Width | 3.31 in |
| Voltage Rating Description | 125 V |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Class Code | A28 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A28A300 |
| Construction | Molded and Fabricated |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 5.250 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| Lowest Level UOM | Each |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
|---|---|
| Country of Origin | United States |
| Dimensions | 5.62 in x 3.31 in x 2.54 in |
| Horsepower - Maximum | 0.5 |
| Amperage Rating | 15 A |
| Color | Gray |
| Length | 5.62 in |
| Number of Poles | 2-Pole |
| Size | 5.62 in x 3.31 in x 2.54 in |
| Standard | UL Listed |
| Voltage Rating | 125 V |
| Wire Size | #14 AWG to #12 AWG |
| Weight | 1.05 lb. |
| Nema Rating | 5-15R |
| Number Of Wires | 3-Wire |
| Description - Invoice | DIN-R UTL BOX, 15A 125V, IG, GY |
| Harmonization Code | 8537109901 |
| MSDS Flag | No |
| Material - Mounting Hardware | Vertical Mount, DIN Rail Mount |
| Current Rating | 15 A |
| BOX SIZE | 6.495x12.745x9.375 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585108100 |
| Each - Pack Description | Each |
| NAICS Code | 335931A107 |
