Hubbell Wiring Device-Kellems DRUB15HCB5 DIN Rail Utility Box, 1 Outlet, 15A, 125V, Gray, Horizontal

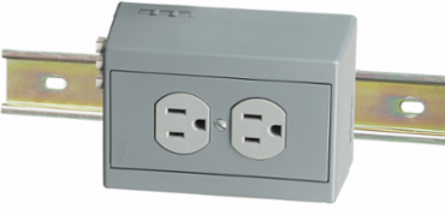

DIN Rail Utility Box, 1 Outlet, 15A, 125V, Gray, Horizontal
  • MPN: DRUB15HCB5
  • UPC: 783585108032
  • PPN: HBL-DRUB15HCB5
  • UNSPSC: 39121303

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$137.86/ EA

Description

DIN Rail Utility Box, Complete Unit- Duplex Receptacle with 5A Circuit Breaker, Horizontal, 1)15A Gray.

Features

  • It provide utility power to any control cabinet
  • Optional auxiliary contacts for feed through capability
  • Pre-wired "kits" are available for end-user customization
  • 20A 125V, 2-Pole 3-Wire Grounding

Specifications

Specifications

Engineering Drawing 1 Display Text
DRUB15HCB5 AutoCAD Drawing
General Literature Asset 2 Display Text
PULP & PAPER SOLUTIONS
Current / Amperage Rating
15 A
Height
2.54 in
Industry Standard(s)
UL Listed
Cable Entry
Terminals
Dielectric Strength
Withstands 2,000V minimum
NEMA Rating
5-15R
Number of Poles
2-Pole
Size
5.62 in x 3.31 in x 2.54 in
Standard
UL Listed
Width
3.31 in
Voltage Rating Description
125 V
Display Size
Standard Sized Product
Number Of Outlets
1-Device
Number Of Wires
3-Wire Grounding
Description - Invoice
DIN-R UTL BOX,15A 125V,DUP,W/CB,HORZ,GY
Harmonization Code
8537109901
MSDS Flag
No
Material - Mounting Hardware
Horizontal Mount, DIN Rail Mount
Current Rating
15 A
Base Unit of Measure
EA
Carton - Gross Weight per Pack
5.250 lb.
Carton - Pack Description
Carton
Carton - Total Units
5 EA
Lowest Level UOM
Each
General Literature Asset 1 Display TextPulp & Paper Solutions
Country of OriginUnited States
Dimensions5.62 in x 3.31 in x 2.54 in
Horsepower - Maximum0.5
Amperage Rating15 A
ColorGray
Length5.62 in
Number of Outlet1-Device
Number of Wires3-Wire Grounding
Special Features20A 125V, 2-Pole 3-Wire Grounding
Voltage Rating125 V
Wire Size#14 AWG to #12 AWG
Weight1.05 lb.
Nema Rating5-15R
Number Of Poles2-Pole
Class CodeA28
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA28A300
ConstructionMolded and Fabricated
MaterialPVC (polyvinyl chloride)
BOX SIZE6.495x12.745x9.375 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585108032
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
No
