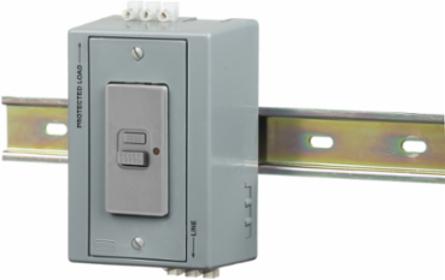

Hubbell Wiring Device-Kellems DRUBGFI20BFAC DIN Rail Utility Box, 20A 125V GFCI, 3-Wire, Gray, 5.62 Inch x 3.31 Inch x 2.54 Inch
- MPN: DRUBGFI20BFAC
- UPC: 783585108247
- PPN: HBL-DRUBGFI20BFAC
- UNSPSC: 39121303
CAD
$243.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
DIN Rail Utility Box, Complete Unit- GFCI, with Aux Contact, DIN Rail Box, 20A Blank Face GFCI, Gray.
Features
- It provide utility power to any control cabinet
- Optional auxiliary contacts for feed through capability
- Pre-wired "kits" are available for end-user customization
- 20A 125V, 2-Pole 3-Wire Grounding
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- DRUBGFI20BFAC AutoCAD Drawing
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Current / Amperage Rating
- 20 A
- Height
- 2.54 in
- Industry Standard(s)
- UL Listed
- Cable Entry
- Terminals
- Length
- 5.62 in
- Number of Poles
- 2-Pole
- Size
- 5.62 in x 3.31 in x 2.54 in
- Standard
- UL Listed
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Description - Invoice
- DIN-R UTL BOX, 20A 125V,BF GFCI,W/AC,GY
- Harmonization Code
- 8536309999
- MSDS Flag
- No
- Material - Mounting Hardware
- Vertical Mount, DIN Rail Mount
- Current Rating
- 20 A
- BOX SIZE
- 6.700x12.500x9.500 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585108247
- Case Weight
- 5.700 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.900 in
- Pallet Weight
- 638.400 lb.
- NAICS Code
- 335931A107
General Literature Asset 1 Display TextPulp & Paper Solutions
Country of OriginChina
Dimensions5.62 in x 3.31 in x 2.54 in
Horsepower - Maximum1
Amperage Rating20 A
ColorGray
NEMA Rating5-20R
Number of Wires3-Wire
Special Features20A 125V, 2-Pole 3-Wire Grounding
TypeBox and Device
Width3.31 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
Class CodeA28
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA28A300
ConstructionMolded and Fabricated
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.9 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585108246
Pallet Length48.000 in
Pallet Width40.000 in
