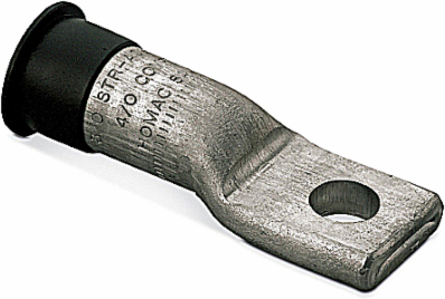

Blackburn SA 3/0-48 Aluminum One-Hole NEMA Lugs 1-3/4 x 1-5/32 Inch, 3/0 Conductor Range

Aluminum One-Hole NEMA Lugs 1-3/4 x 1-5/32 Inch, 3/0 Conductor Range
  • MPN: SA 3/0-48
  • UPC: 783786749935
  • PPN: T-B-SA 3/0-48

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$17.42/ EA

Description

Aluminum One-Hole Lugs - common die series - stacking lugs, conductors - Al or Cu, concentric 3/0, compressed 4/0, compact 4/0, ACSR 3/0, installing dies TX,76,249,840,,845,11A,CSA 24, Length 3-21/64 inches long

Features

  • Entire Conductor Range Installed by Four Dies to Reduce Die Inventory.
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Made from Aluminum for High Strength and Conductivity.
  • Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
  • All Lugs Marked with Conductor Size and Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121448 Wire or cable compression connector
Brand Name
Blackburn
Special Features
Entire conductor range installed by four dies. Lessens your die inventory. Dual-Rated for use with Aluminumand Copper Conductors. Made of Aluminum for high strength and high conductivity. Prefilled with Oxide Inhibitor to Prevent Oxidation and keep out Moisture. Marked with Conductor Sizes and Die References for Easy Identification.
Standard
ANSI C119.4
Conductor Range
3/0 Concentric, 4/0 Compressed, 4/0 Compact, 3/0 Solid
IGCC4668 Wire or cable compression connector
TypeAluminum One-Hole NEMA Lugs
ApplicationDesigned for general applications and for installation on Homac 125 series insulated buses.
Size1-3/4 x 1-5/32 inch wide
MaterialAluminum

Packaging

Outer Quantity
50
Weight Uom
0.14 lbs. Each
Outer Dimensions (inches)7.75x6.5x7.25
