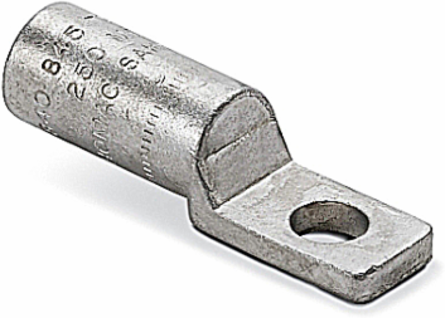

Blackburn SAKM 1/0-48 Aluminum Meter Socket Lug 3-1/4 Inch, 1/0 Conductor Range, 6.25 lbs per 1000
- MPN: SAKM 1/0-48
- UPC: 783786748006
- PPN: T-B-SAKM 1/0-48
CAD
$24.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Meter Socket Lugs - 1/2 bolt, conductors - Al or Cu, concentric 1/0, compressed 1/0, compact 2/0, solid 2/0, installing dies 840,845,TX,76,249,11A
Features
- All Installation Done with One Die to Reduce Your Die Inventory.
- Made of Aluminum for High Strength and High Conductivity.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Connector Bores Coated with Oxide Inhibitor to Prevent Oxidation.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Lugs Meet or Exceed ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- All Installation done with one die to reduce your die inventory. Dual-Rated for use with Aluminum and Copper Conductors. Bores coated with Oxide Inhibitor to Prevent Oxidation. Marked with Conductor Sizes and Die References for Easy Identification. Made of Aluminum for High Strength and High Conductivity.
- Standard
- ANSI C119.4
- Conductor Range
- 1/0 Concentric, 1/0 Compressed, 2/0 Compact, 2/0 Solid
IGCC4668 Wire or cable compression connector
TypeAluminum Meter Socket Lug
ApplicationFor Meter Pan and General Applications
SizeLength 3-1/4 inches
MaterialAluminum
Packaging
- Outer Quantity
- 50
- Weight Uom
- 6.25 lbs. per 1000
Outer Dimensions (inches)7.7x6.4x6.9
